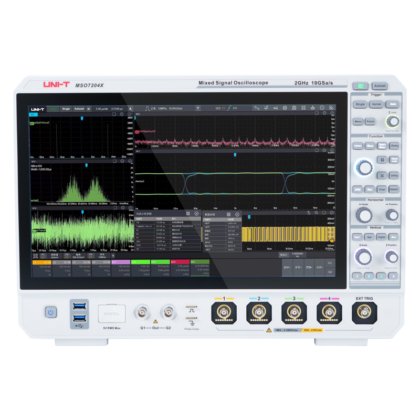

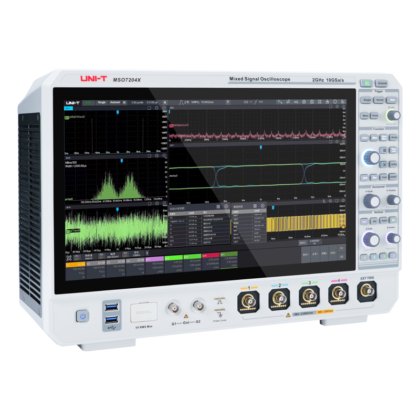

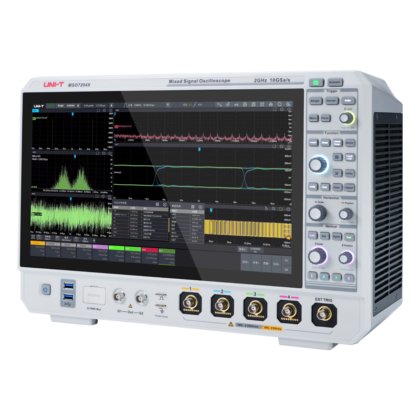

MSO7000X series high-bandwidth mixed signal oscilloscopes (including three models: MSO7254X, MSO7204X, and MSO7204X) in Beijing, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Analog channel bandwidth
- Up to 2.5G (1G/2G/2.5GHz)
- Maximum sampling rate
- 10GSa/s
- Maximum storage depth
- 1Gpts
- Rich trigger types
- Edge, Pulse Width, Slope, Video, Pattern, Timeout, Runt, Setup and Hold, Delay, Duration, N-Edge
- A variety of advanced measurement and analysis functions
- Power supply analysis (option), jitter & eye diagram analysis (option), mask test, histogram, etc.
- Built-in 16-channel logic analyzer
- Sampling rate 1.25GSa/s, memory depth 125Mpts
- Category
- Oscilloscopes in China
- Subcategory
- Electronic equipment
- Subcategory 2
- Digital hybrid oscilloscope
- Listing ID
- 104132143
Description
Introduction:
MSO7000X series high-bandwidth mixed signal oscilloscope (including 2.5GHz bandwidth MSO7254X, 2GHz bandwidth MSO7204X, 1GHz bandwidth MSO7204X three models) 4 channels, maximum sampling rate: 10GSa/s, maximum storage depth: 1Gpts, maximum waveform capture rate: 2000000wfms/s.
Product Introduction:
MSO7000X series high-bandwidth mixed signal oscilloscope, with extraordinary performance indicators, comprehensive and detailed analysis functions, humanized touch experience, to help you explore the ocean of science and technology.
2G bandwidth is the starting point of high-end oscilloscopes, MSO7000X series bandwidth up to 2.5GHz, has obvious advantages in high-speed signal analysis. The waveform capture rate of MSO7000X in sequential mode can reach 2,000,000wfms/s, and the waveform capture rate in UltraAcq® mode can reach 1,000,000wfms/s. Combined with the ultra-long storage depth of 1G, it significantly improves the ability to capture abnormal signals, as well as the ability to measure and analyze waveform details. Equipped with Win10 64-bit operating system, it provides users with a stable and scalable system platform. By providing an oscilloscope API interface, it significantly improves the intelligence of the system to meet the increasingly complex needs of users.
Main features:
Waveform capture rate: ≥1,000,000wfms/s (UltraAcq® mode), 2,000,000wfms/s (sequential mode)
Up to 11 serial protocol analysis: RS232/422/485/UART, I2C, SPI, CAN, CAN FD, LIN, FlexRay, SENT, MIL STD1553, ARINC429, AudioBus (I2S\LJ\RJ\TDM)
Integrates 7 independent instruments in one: including digital oscilloscope, logic analyzer, spectrum analyzer, function/arbitrary waveform generator, digital voltmeter, frequency meter, protocol analyzer
Up to 52 parameter measurements, support histogram, tracking, trend chart
Equipped with Win10 64-bit operating system, 15.6-inch high-definition capacitive touch screen, supports various gesture operations: click, slide, zoom, edit, drag, etc.
Embedded WebServer, can access and control the instrument through the browser, observe and measure, support PC/mobile two styles of layout and operation, and easily achieve cross-platform access
Support SCPI standard instruction specifications

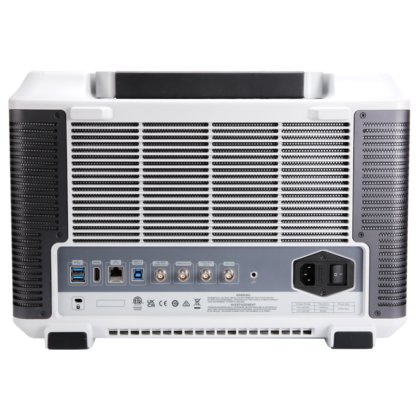

Rich interfaces: USB Host&Device, LAN, HDMI, AUX In/Out, 10MHz Ref In/Out
Up to 8-channel waveform operation, built-in spectrum analysis and peak search functions, support Matlab embedded programming and data presentation, support enhanced resolution up to 3 bits
Built-in 60MHz dual-channel function/arbitrary waveform generator
