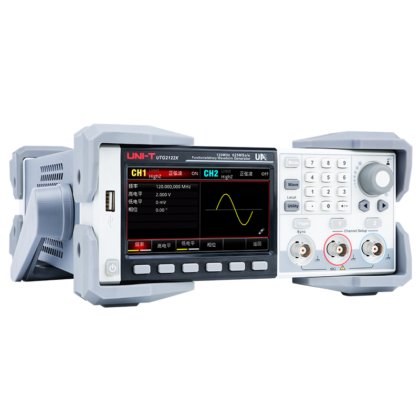

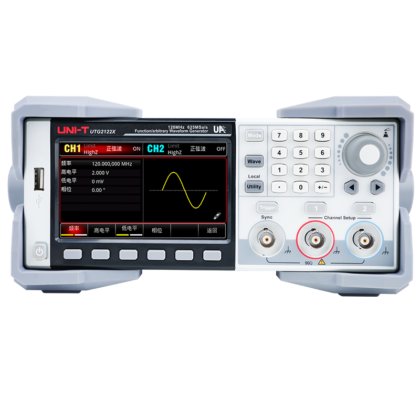

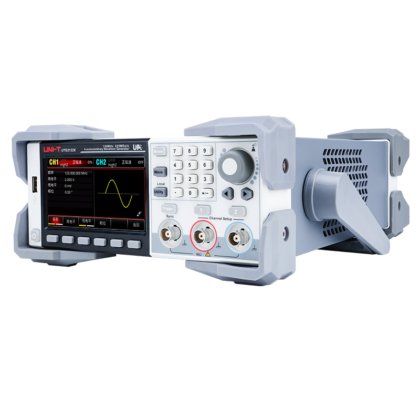

UTG2000X series function/arbitrary waveform generator (three models: UTG2062X/UTG2082X/UTG2122X) in Beijing, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- With 10 basic waveform outputs
- Sine wave, square wave, pulse wave, ramp wave, arbitrary wave, harmonic, expression, pseudo random code, noise, DC
- Category
- Test Generators in China
- Subcategory
- Signal source
- Subcategory 2
- Electronic equipment
- Subcategory 3
- Arbitrary waveform generator
- Listing ID
- 104132034
Description
Introduction:
UTG2000X series function/arbitrary waveform generator (three models: UTG2062X/UTG2082X/UTG2122X) 2 channels, output frequency 60MHz/80MHz/120MHz, sampling rate 1.25GSa/s, maximum arbitrary wave length 64Mpts.
Product Introduction:
UTG2000X series uses direct digital synthesis technology to produce accurate and stable waveform output, with a frequency resolution as low as 1μHz. It is an economical, high-performance, and multi-functional function/arbitrary waveform generator. It can generate accurate, stable, pure, and low-distortion output signals, with convenient operation, superior technical indicators, and user-friendly graphic display. It is a multi-purpose device that meets learning and testing needs and improves work efficiency.
Main features:
Dual-channel performance, maximum output frequency 120MHz, maximum output amplitude 20Vpp
625MSa/s sampling rate, 16-bit vertical resolution
Square wave maximum frequency 50MHz, low jitter
Wide dynamic high-precision edge time adjustable pulse wave, can achieve fine adjustment of edge time, with extremely high adjustment resolution and adjustment range
Excellent performance with low harmonic distortion
Rich analog and digital modulation functions: AM, PM, FM, DSB-AM, ASK, PSK, BPSK, QPSK, FSK, 3FSK, 4FSK, QAM, OSK, PWM, SUM
Support frequency sweep and pulse train output
Arbitrary waveform length 8pts ~ 64Mpts
Low jitter waveform can be output point by point within the range
Support channel copy, follow and superposition settings
Can generate arbitrary waveforms through the host computer arbitrary waveform editor
With 7-bit hardware frequency meter function
Built-in 200 arbitrary waveforms
Standard USB Host, USB Device and LAN interface
Support SCPI programmable instrument standard commands
4.3-inch TFT LCD capacitive touch display
