T46y High Precision CNC Lathe Machine with Live Tooling System in Zhejiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- 1 Year
- Application
- Metal
- Process usage
- Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
- Movement method
- Point to Point Control
- Control method
- Closed-Loop Control
- Numerical control
- CNC/MNC
- Processing precision
- 0.01~0.02(mm)
- Performance classification
- Economical CNC Machine Tools
- Certification
- CE
- Cnc system
- GSK
- Optional cnc system
- Fanuc, Mitsubishi M80, Siemens, Knd, Nanjing Kt
- X axis travel
- 230mm
- Y axis travel
- ±50mm
- Z axis travel
- 420mm
- Spindle bore
- 56mm
- Spindle nose
- A2-6
- Chuck size
- 8-Inch Hydraulic Chuck
- Ball screw specifications
- X-3210-THK/Z-3210-THK
- Ball screw bearings
- X-2562/Z-2562
- Linear guide specifications
- X-35-PMI/Z-35-PMI
- Power of servo spindle motor
- 11kw
- Transport package
- Seaworthy Packing
- Specification
- 2100*1767*2140mm
- Hs code
- 84589100
- Production capacity
- 1500 Sets/Year
- Category
- CNC Lathes in China
- Subcategory
- Machine tools
- Subcategory 2
- Cnc machine tools
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 104088948
Description
Product Description

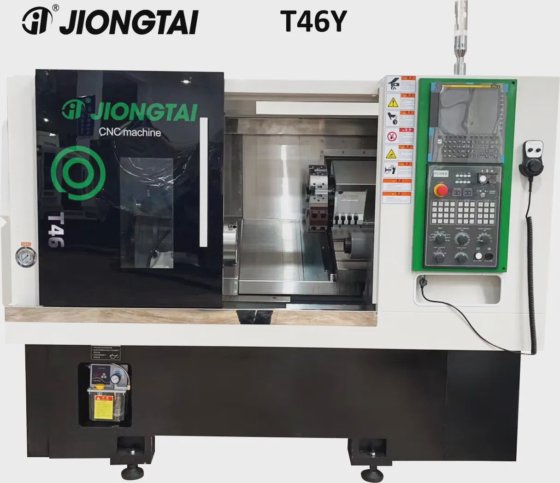

T46Y
CNC
Turning
and
Milling
Machine
The
T46Y
is
a
high-
performance
CNC
turning
and
milling
center
designed
for
complex
machining
tasks.
Featuring
a
robust
cast
iron
bed
and
compact
structure,
it
combines
turning,
milling,
drilling,
and
tapping
functions
in
one
machine,
significantly
improving
efficiency
and
accuracy.
Equipped
with
a
C-
axis
and
Y-
axis
,
the
T46Y
supports
full-
axis
interpolation,
making
it
ideal
for
processing
multi-
feature
parts
in
a
single
setup.
The
power
turret
holds
up
to
12
tools,
including
both
turning
and
driven
tools,
enabling
complex
machining
operations
without
secondary
processing.
The
spindle
offers
high
torque
and
precision,
with
stable
performance
across
various
speeds.
Supported
control
systems
include
Siemens
,
Fanuc
,
or
GSK
,
offering
reliable
operation
and
user-
friendly
programming.
This
machine
is
suitable
for
the
production
of
precision
parts
in
automotive
,
medical
,
aerospace
,
and
hydraulic
industries.
