T56s Smart Control for Complex Machining Tasks CNC Lathe in Zhejiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- 1 Year
- Application
- Metal
- Process usage
- Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
- Movement method
- Point to Point Control
- Control method
- Closed-Loop Control
- Numerical control
- CNC/MNC
- Processing precision
- 0.01~0.02(mm)
- Performance classification
- Economical CNC Machine Tools
- Certification
- CE, ISO 9001
- Cnc system
- GSK
- Optional cnc system
- Fanuc, Mitsubishi M80, Siemens, Knd, Nanjing Kt
- Z axis travel
- 230mm
- X axis travel
- 620mm
- Spindle bore
- 66mm
- Spindle nose
- A2-8
- Ball screw specifications
- X-3210/Z-4010-THK
- Linear guide specifications
- X-35-PMI/Z-35-PMI
- Ball screw bearings
- X-2562/Z-2562
- Power of servo spindle motor
- 11kw
- Transport package
- Seaworthy Packing
- Specification
- 2250*1767*1750mm
- Hs code
- 84589100
- Production capacity
- 1500sets/Year
- Category
- CNC Lathes in China
- Subcategory
- Machine tools
- Subcategory 2
- Cnc machine tools
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 104088921
Description

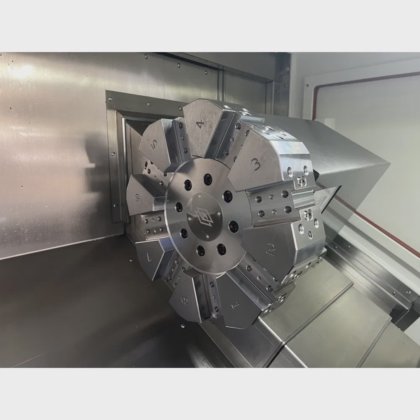

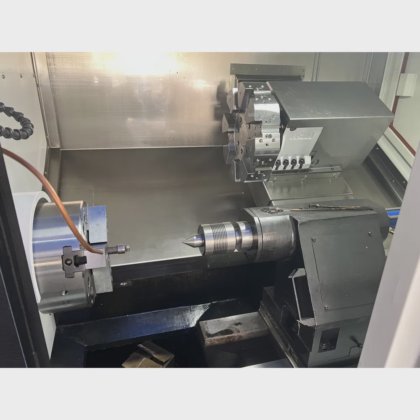

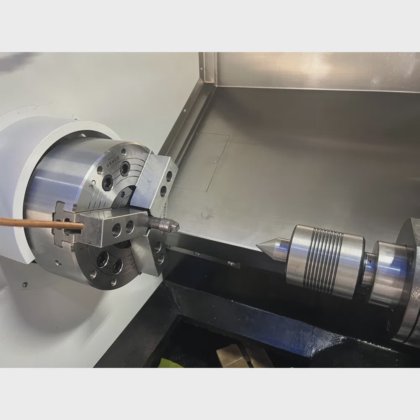

Actual machine photo
Product Description
Specifications
JT-T56S
Machining Capacity
Max Swing Over Bed
550mm
Max Machining Diameter
450mm
Max Machining Length
500mm
Max Swing Over Carriage
320mm
Spindle
Spindle Speed Range
0-4500rpm
Spindle Bore
66mm
Spindle Nose
A2-6
Chuck Size
8 inch hydraulic chuck
Feed
Ball Screw Specifications
X-3210-THK/Z-3210-THK
Linear Guide Specifications
X-35-PMI/Z-35-PMI
Ball Screw Bearings
X-2562/Z-2562
Travel
X-Axis Travel
510mm
Z-Axis Travel
620mm
Accuracy
X/Z Axis Rapid Traverse Speed
24/24m/min
X/Z Axis Repositioning Accuracy
0.003mm
Main Motor
Power of Servo Spindle Motor
11KW
Machine Specifications
Overall Dimensions of the Machine
2250*1767*1750
Weight (Approx.)
3500KG
Optional Configuration
Optional configuration
T56S
Spindle
170-A2-6(Through hole 56mm)
4-7017/4-7015
200-A2-6(Through hole 66mm)
