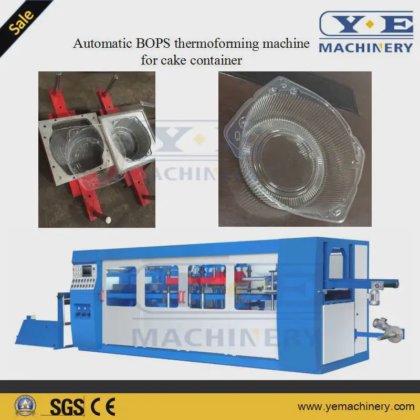

Automatic BOPS Container Thermoforming Machine with Stacking in Zhejiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Certification
- CE
- Column number
- Four Column
- Molding method
- Pressing
- Automatic grade
- Automatic
- Color of forming machine
- Light Gray and Blue
- Plc for thermoforming machine
- Mitsubishi, Japan
- Servo motor for forming machine
- Mitsubishi, Japan
- Heater
- Germany or China
- Transport package
- Thermforming Machine Wrap with Film
- Specification
- thermforming machine was according to CE standard
- Hs code
- 847740
- Production capacity
- 5sets Thermoforming Machine Per Month
- Category
- Thermoforming in China
- Subcategory
- Plastic machinery
- Subcategory 2
- Thermoforming machine
- Subcategory 3
- Automatic thermoforming machine
- Subcategory 4
- Manufacturing & processing machinery
- Listing ID
- 103649802
Description
Application:
The machine is suitable for producing all sizes of packing containers under high-speed vacuum function-positive and negative pressure forming processing. Plastic containers produced by this machine can be used for packing of food, tourist goods, cosmetic products, toy, electrical elements and hard-ware of daily use, etc.
It's suitable for PVC, HIPS, PET, PS, EPS material.
Specification
Model
TF78C
Max. Forming Area
600x400 mm
Depth of Draw under sheet
105 mm Max
Depth of Draw above sheet
30 mm Max
Forming mold stroke
2*110
Cutting mold stroke
110mm
Cutting mold stroke
Max 100mm
Suitable material
PET PP PS EPS PVC
Sheet Width
350- 650 mm
Material Thickness Range
0.15-1.5 mm
Material Roll Diameter
1100 Max
Rewinding diameter
710 mm
Cycles per Minute
30(PET 30Cycles/min, PP 20cycles/min)
Power Supply
3-N AC380V±15V
Air Pressure
0.7 Mpa
Cooling
water cooling
