Mars-Stone Wash Basin Cutting Process CNC Router Machine CNC Cutting Machine CNC Engraving Machine Stone CNC Machine High Efficiency Customizable in Anhui, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Function
- Cutting, Line Engraving
- Application material
- Marble
- Automation
- Automatic
- Control
- CNC
- Motor power
- High Power
- Engraving head speed adjustability
- Wide Adjustable Range
- Certification
- CE, ISO, SGS,BV
- Current
- AC
- Application
- Glass, Ceramics, Advertising, Stela & Gravestone, Stone Industry
- Customized
- Customized
- Transport package
- Wooden Case
- Specification
- 3300x2300x2000mm
- Hs code
- 8464909000
- Production capacity
- 3000 Sets/ Year
- X/y/z axis working area
- 1600*3000*240mm
- Machine structure
- Thick steel welded, with aging treatment
- Control system
- NC Studio NC65C
- Drive motor
- Leadshine servo motor and Stepper driver motor

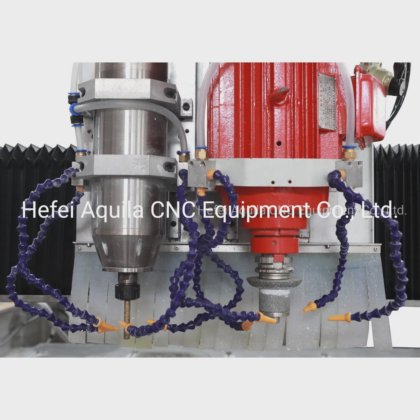

- Spindle motor power
- 5.5KW+7.5KW water cooled spindle
- Spindle speed
- Adjustable Rotational Speed with 0-24000 rpm/min
- Inverter
- Zoncn (Optional with Fuling)

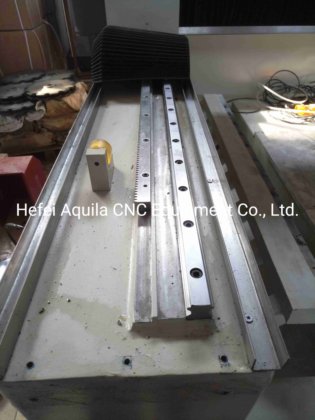

- Guide rail
- Taiwan imported linear guide rail PMI
- Cooling system
- Circulating water-refluxing design/Round Spray
- Oil system
- Automatic Oil system
- Way of fixing workpiece
- Double-sided sealed vacuum adsorption system
- Suction cup
- 6pcs
- Water and dust resistant
- Intelligent dust proof cooling system
- Hand wheel
- Electric hand wheel
- Profile polishing wheel
- Max diameter 150mm
- Tool type
- BT40, Φ35, Φ30
- Collet/tool holder
- ER32, Φ10, Φ12, Φ12.7, Φ16, Φ20
- Electric motor
- 7.5KW
- Positioning cylinder
- 6pcs

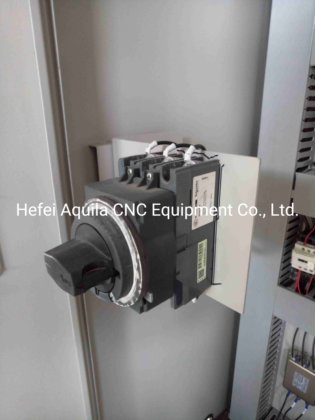

- Electric appliance
- Germany Schneider
- Reducer
- Planetary reducer
- Working accuracy
- ±0.08mm
- Re-positioning accuracy
- ±0.05mm
- Max. traveling speed
- 25 m/min
- Max.working speed
- 15 m/min
- Water sink/tank
- Powder-painting (Stainless steel is optional)
- Dictate format
- G-Code / HPGL
- Water consumption
- 46L/min
- Air pressure
- 0.8Mpa
- Weight
- 3000KGS
- Working voltage
- AC380V 3PH 50HZ
- Vacuum pump
- 1*7.5KW
- Category
- Stone Equipment in China
- Subcategory
- Stone carving machine
- Subcategory 2
- Stone processing machinery
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 103573499
Description

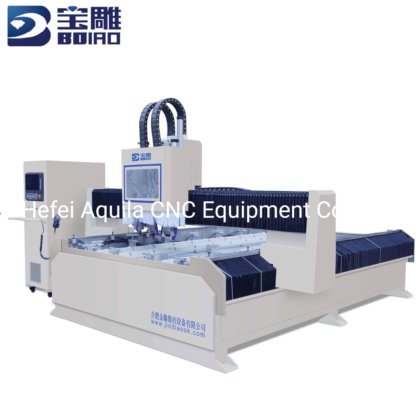

Stone Wash Basin Shaped Lines Cutting Process CNC Router Machine
Keywords:15 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brand: Mars, Golden Eagle,Borio

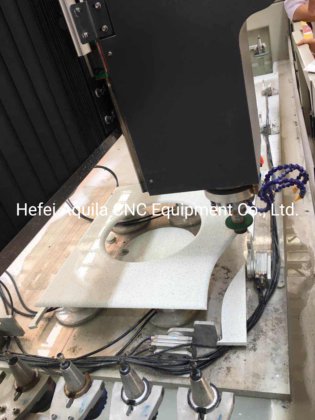

Stone Wash Basin Shaped Lines Cutting Process CNC Router Machine is BOIRO featured machine widely used in quartz stone,marble,granite and other materials made of countertop,wash basin,shaped lines,grinding and cutting process.BOIRO design it for many years, now popular in the market, it's economic machining center of stone cutting machine.
Functions:
The functions of this machine include 2D sculpture,3D relief,cutting,chamfering,drilling and engraving.
Applicable Materials:
Widely used for marble, jade, granite, tombstones, milestones,ceramic tiles,glass,bluestones and etc..
Application Scope:
$15,999 USD
