Xs300 Auto Loading and Unloading Device Wood Panel Furniture Production Machine Tracking Mode Circular Tool Change CNC Router Woodworking CNC Router in Anhui, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Certification
- ISO, CE
- Cnc or not
- CNC
- Voltage
- 380V
- Configuration
- 9kw Air Cooling Spindle + Circular Tool Change
- Other
- Also Include Drilling Bank (5+4)
- Transport package
- Wrapped in Layers of Wrapping Film and Ponchos
- Specification
- 1300*2500*300mm
- Hs code
- 8465990000
- Production capacity
- 3000 Sets/Year
- Machine size
- 3700*3100*1900mm
- Table structure
- Double vacuum chamber absorption table
- Body structure
- Heavy-duty thicken steel structure w/ tempering
- Drive system
- Japan Yaskawa servo motor
- Spindle motor power
- 9KW air cooling spindle; 0 ~ 24000 rpm/min
- Drilling head
- Italy HSD 5+4 gang drill
- Lubrication system
- Automatic
- Guide rail
- Taiwan PMI/Hiwin 25mm rectangular linear rail
- Inverter
- Zoncn/Delta/Fuling brand
- Limit switch
- Japan Omron
- Vacuum pump
- 1*7.5KW water vacuum pump
- Max travelling speed
- 50m/min
- Max processing speed
- 30m/min
- Working accuracy
- ±0.02mm
- Re-positioning accuracy
- ±0.05mm
- Dictate format
- G-Code / HPGL
- Working voltage
- AC380V/ 3PH/ 50HZ
- Net weight
- 3000KG
- Category
- CNC Wood Routers in China
- Subcategory
- Woodworking machinery
- Subcategory 2
- Woodworking engraving machine
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 103573394
Description

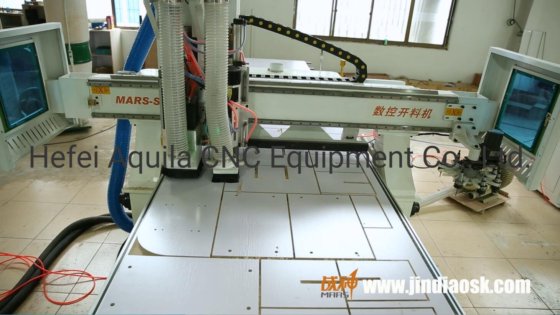

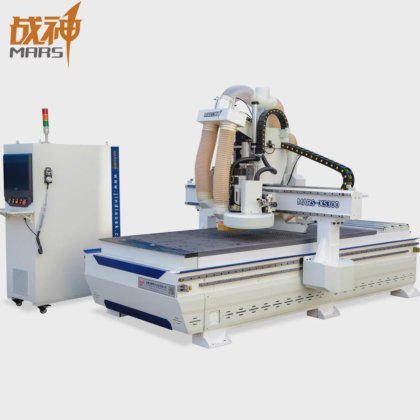

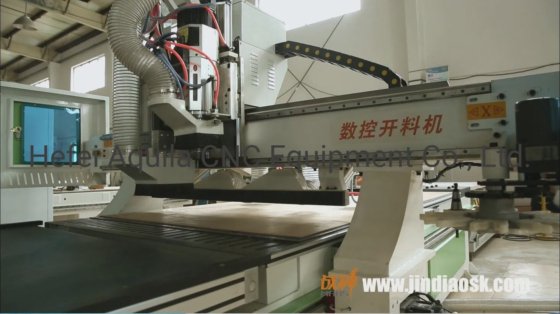

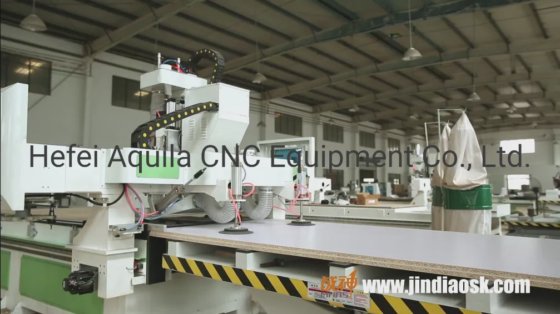

XS300 Auto Loading and Unloading Device Wood Panel Furniture Production Machine
Keywords:15 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brand: Mars, Golden Eagle,Borio
XS300 Auto Loading and Unloading Device Wood Panel Furniture Production Machine is MARS featured machine for processing molded doors, wooden windows, wooden cabinet, wood panels. MARS design it for many years, now popular in the market, it's economic machining center of woodworking cutting machine.
Functions:
The functions of this machine include cutting,milling,drilling and slotting.
Applicable Materials:
MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc.
Application Scope:
Cabinet doors, wooden doors, solid wood, panels, doors, windows, tables, chairs, folding screens, waved plate, large wall hangings, advertising boards, sign makings.
Parameters:
Basic, X/Y/Z Axis Working Area, 1230*2450*200mm
