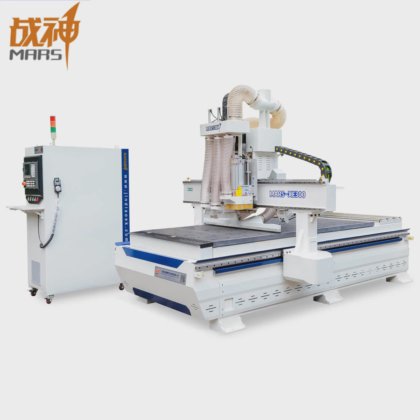

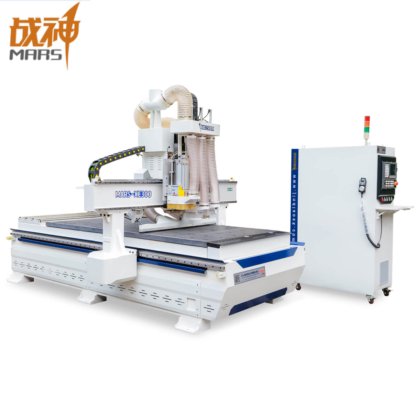

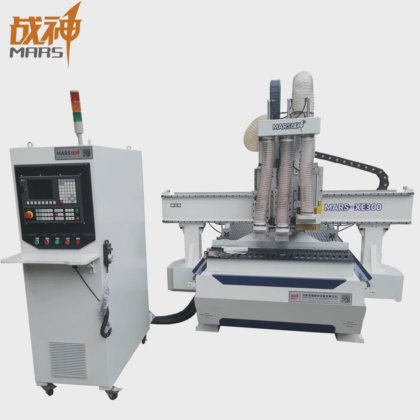

E300 CNC Router Machine with Drilling Block Auto Loading and Unloading CNC Engraving Machine for Wood Panels in Anhui, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Certification
- ISO, CE
- Cnc or not
- CNC
- Voltage
- 380V
- Table structure
- Vacuum Table
- Spindle speed
- 0-24000 rpm
- Working voltage
- AC380/ 3PH/ 50HZ
- Configuration
- 6kw+ 4.5kw Air Cooled
- Transport package
- Wrapped in Layers of Wrapping Film and Ponchos
- Specification
- 1300*2500*300 mm
- Hs code
- 84659900
- Production capacity
- 300 Sets/Month
- X/y/z axis working stroke
- 1230*2450*200mm
- Table surface
- vacuum Table
- Body structure
- Thick-walled steel tube welded, w/ tempering
- Spindle power
- 6KW + 4.5KW air-cooling spindle
- Drilling head
- Italy HSD 5+4 drill bank
- Control system
- Taiwan Syntec
- Drive sytem
- Japan Yaskawa Servo motor
- Transmission
- X/Y axis helical rack & pinion, Z axis ball screw
- Guide rail
- Taiwan Hiwin rectangular linear rail
- Vacuum pump
- 7.5KW
- Dictate format
- G code/ HPGL
- Lubrication system
- Automatic
- Max travelling speed
- 60m/min
- Max processing speed
- 30m/min
- Working accuracy
- ±0.02mm
- Re-positioning accuracy
- ±0.05mm
- Category
- Engraving Machines in China
- Subcategory
- Woodworking machinery
- Subcategory 2
- Woodworking engraving machine
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 103573099
Description
E300 CNC Router Machine with Drilling Block Auto Loading and Unloading CNC Engraving Machine for Wood Panels
Keywords:15 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brand: Mars, Golden Eagle,Borio
EE300 CNC Router Machine with Drilling Block Auto Loading and Unloading CNC Engraving Machine for Wood Panels is MARS featured machine for processing molded doors, wooden windows, wooden cabinet, wood panels. MARS design it for many years, now popular in the market, it's economic machining center of woodworking cutting machine.
Functions:
The functions of this machine include cutting,milling,chamfering,punching,engraving and other auxiliary processing.
Applicable Materials:
MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc.
Application Scope:
