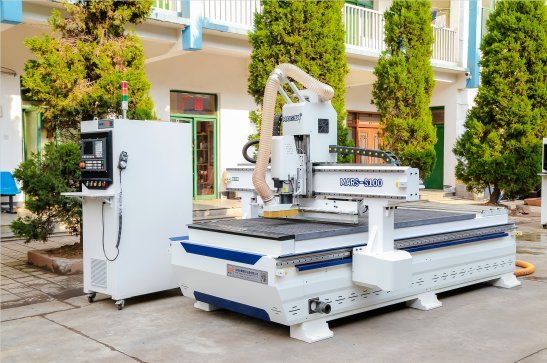

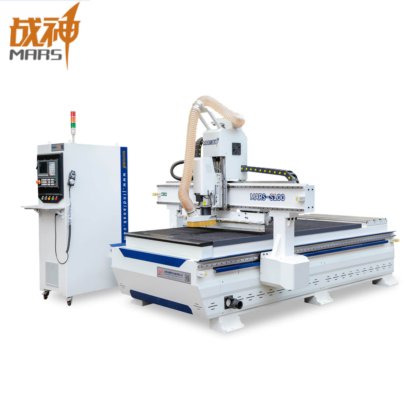

S100 CNC Machine Router Machine Linear Atc CNC Router Machine CNC Machine Customizable in Anhui, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Certification
- ISO, CE
- Cnc or not
- CNC
- Voltage
- 380V

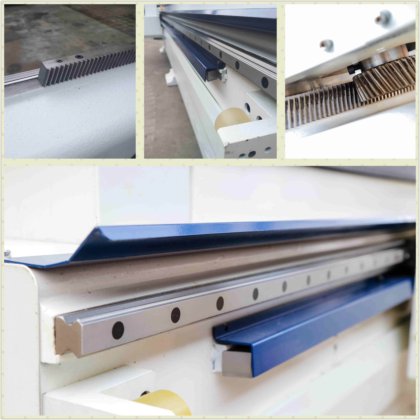

- Guide rail
- Taiwan Hiwin linear rail
- Drive system
- Yaskawa/ Delta servo motor
- Spindle speed
- 0 ~ 24000 rpm/min

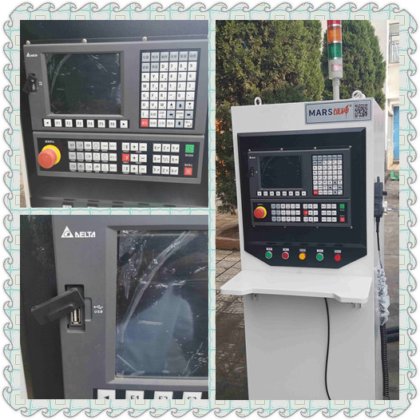

- Control system
- Syntec/ Osai
- Transport package
- Plywood Case Package
- Specification
- 1230*2450mm
- Hs code
- 84659900
- Production capacity
- 300 Sets/Month
- Working stoke
- 1300*2500*100mm
- Body structure
- Thick-walled steel tube welded
- Spindle power
- HSD 9KW air cooling spindle
- Lubrication system
- Automatic
- Transmission
- XY axis rack and pinion, Z axis ball screw
- Vacuum pump
- 5.5KW
- Max travelling speed
- 25m/min
- Max processing speed
- 15m/min
- Category
- Woodworking equipment in China
- Subcategory
- Woodworking machinery
- Subcategory 2
- Woodworking engraving machine
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 103573034
Description

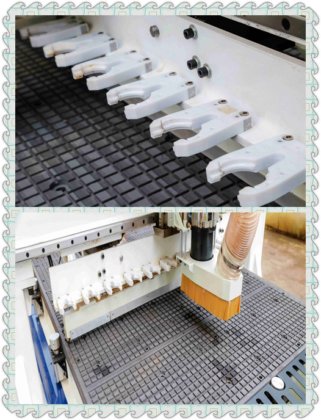

S100 10pcs ATC Changer with ISO9001 Processing Machine for MDF Paint Doors
Keywords: 15 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brands: Mars, Golden Eagle, Boiro
Technicist who go abroad to offer after-sale service
Technical Parameters:
Functions:
The functions of this machine include cutting,milling,drilling and slotting.
Accessories:
Applicable Scope:
Cabinet doors, wooden doors, solid wood, panels, doors, windows, tables, chairs, folding screens, waved plate, large wall hangings, advertising boards, sign makings
Applicable Materials:
Artificial stone, wood, bamboo, marble, organic board, color plates and other materials.
