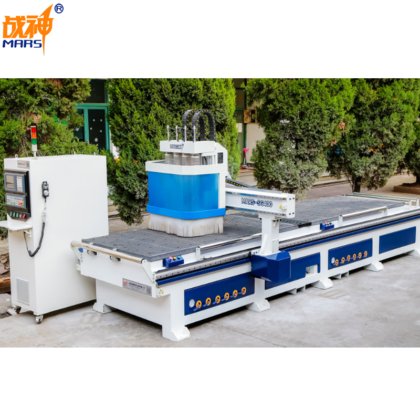

Mars Sg400-D Four Process CNC Machining Center with Double Working Table Router in Anhui, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Online/Local Engineer
- Certification
- ISO, CE, CE, ISO 9001, Patent Certification
- Cnc or not
- CNC
- Voltage
- 380V
- Process usage
- CNC Non-Conventional Machine Tools
- Control method
- Closed-Loop Control
- Numerical control
- CNC
- Processing precision
- 0.01~0.02(mm)
- Performance classification
- MID-Range CNC Machine Tools
- Application
- Wood, Bamboo, Marble, Organic Board, Color Plates
- Movement method
- Pneumatic Tool Change
- Configuration
- 6kw+4.5kw+4.5kw+4.5kw
- Transport package
- Wrapped in Layers of Wrapping Film and Ponchos
- Specification
- Working Area: 1300*2500*200mm
- Hs code
- 8465990000
- Production capacity
- 3000 Sets/Year
- Machine size
- 2300*3600*1800mm
- Table structure
- Double vacuum chamber absorption table
- Drive system
- Leadshine 758 servo motor drive
- Transmission
- XY axis rack and pinion, Z axis ball screw
- Guide rail
- Taiwan PMI/Hiwin rectangular linear rail
- Limit switch
- Japan Omron
- Vacuum pump
- 1*7.5KW double leaf vacuum pump
- Max processing speed
- 30m/min
- Working accuracy
- ±0.02mm
- Re-positioning accuracy
- ±0.05mm
- Dictate format
- G-Code / HPGL
- Working voltage
- AC380V/ 3PH/ 50HZ
- Category
- Machining Centers in China
- Subcategory
- Woodworking machinery
- Subcategory 2
- Woodworking engraving machine
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 103573030
Description
SG400-D Four process CNC machining center with double working table
Keywords: 20 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brand: Mars, Golden Eagle,Borio
SG400-D For Panel Doors Solid Board Milling Machine with Vacuum Table is MARS featured machine for processing molded doors, wooden windows, wooden cabinet, wood panels. MARS design it for many years, now popular in the market, it's economic machining center of woodworking cutting machine.
Functions:
The functions of this machine include cutting, drilling, slotting and milling on artificial stone,wood,bamboo,etc.,processing of various patterns and characters.
Applicable Materials:
Artificial stone,wood,bamboo,marble,organic board,two-color board,etc..
Application Scope:
Cabinet doors,wooden doors,solid wood,panels,doors&windows,tables &chairs,screens,wave panels,large wall hangings,advertising panels,logo&sign making.
Parameters:
$12,999 USD
