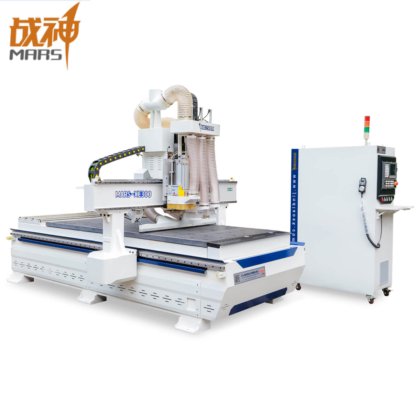

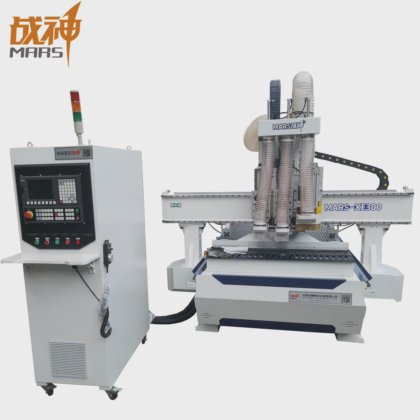

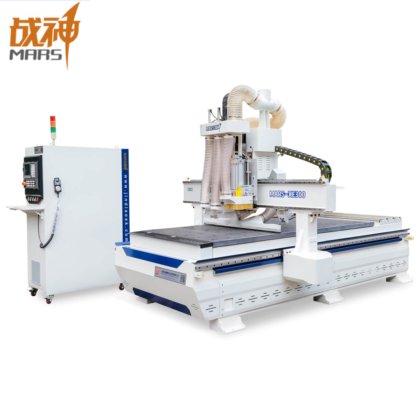

E300 CNC Machine Woodworking with Double Spindle for Panel Furniture CNC Nesting Machine CNC Lathe Machine CNC Boring Machine Customizable in Anhui, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Certification
- ISO, CE
- Cnc or not
- CNC
- Voltage
- 380V
- Working stoke
- 1230*2440*50mm
- Guide rail
- Taiwan Hiwin rectangular linear rail
- Lubrication system
- Automatic
- Control system
- Syntec/ Osai
- Transport package
- Plywood Case Package
- Specification
- 3000KG
- Hs code
- 84659900
- Production capacity
- 300sets/Month
- Body structure
- Heavy-duty thicken steel structure, w/ tempering
- Spindle power
- HQD 6KW+4.5KW air cooling spindle
- Spindle speed
- 0 ~ 24000 rpm/min
- Drilling bank
- Italy HSD 5+4 gang drill
- Drive system
- Yaskawa/ Delta servo motor
- Transmission
- XY axis rack and pinion, Z axis ball screw
- Vacuum pump
- 5.5KW
- Max travelling speed
- 50m/min
- Max processing speed
- 30m/min
- Dictate format
- G code/ HPGL
- Working accuracy
- ±0.02mm
- Re-positioning accuracy
- ±0.05mm
- Support software
- Professional cutting optimization software
- Working voltage
- AC380/ 3PH/ 50HZ
- Net weight
- 3000KG
- Machine size
- 3700*3100*1900mm
- Category
- CNC Lathes in China
- Subcategory
- Woodworking machinery
- Subcategory 2
- Woodworking engraving machine
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 103572855
Description
E300 Cnc Machine Woodworking with Double Spindle for Panel Furniture
Keywords: 15 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brands: Mars, Golden Eagle, Boiro
Technicist who go abroad to offer after-sale service
Technical Parameter:

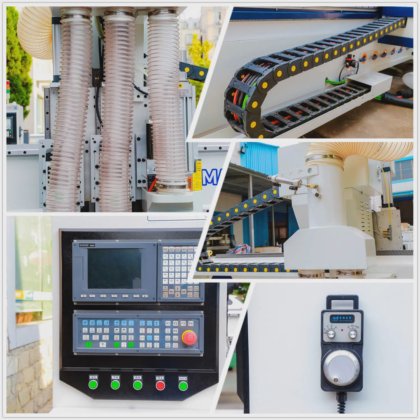

Machine Main Parts:
Performance Features:
1. Equipped with all the leading international brand components.
2. High-power Italy HSD air-cooling spindle, Japan YASKAWA servo motor and driver.
3. Vacuum table, high adsorption capacity, able to adsorb materials of different sizes.
4. Intelligent protection work table can prevent table damages caused by misuse or software errors. Intelligent processing cross-border protection can prevent mechanical collisions while design layout exceeds processing area.
5. Syntec CNC control system can automatically accomplish multi-layer 3D job, cutting, engraving, milling, all at ease. Offline operation can be realized.
Available Materials:
Functions:
Samples:
