Stable Table Moving Woodworking Circular Tool Change CNC Router Machine in Anhui, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Certification
- ISO, CE, Ce, ISO 9001, Patent Certification
- Cnc or not
- CNC
- Voltage
- 380V
- Process usage
- CNC Non-Conventional Machine Tools
- Movement method
- Contour Control
- Control method
- Closed-Loop Control
- Numerical control
- CNC
- Processing precision
- 0.01~0.02(mm)
- Performance classification
- MID-Range CNC Machine Tools
- Application
- Wood, Bamboo, Marble, Organic Board, Color Plates
- Configuration
- 9kw Air Cooling Spindle + Circular Tool Change
- Transport package
- Wrapped in Layers of Wrapping Film and Ponchos
- Specification
- Working area: 1230*2450*230mm
- Hs code
- 8465990000
- Production capacity
- 3000 Sets/Year
- Table structure
- Double vacuum chamber absorption table
- Body structure
- Heavy-duty thicken steel structure w/ tempering
- Spindle motor power
- 9KW air cooling spindle; 0 ~ 24000 rpm/min
- Lubrication system
- Automatic
- Transmission

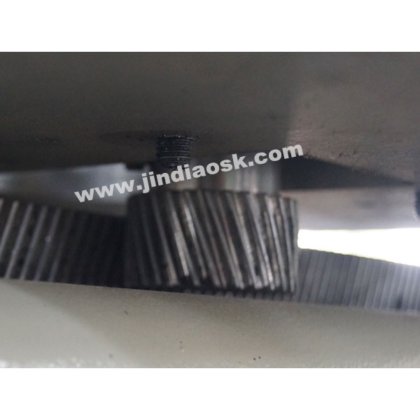

- XY and Z axis are all ball screw
- Guide rail
- Taiwan PMI/Hiwin 25mm rectangular linear rail
- Positioning cylinder
- 6pcs
- Limit switch
- Japan Omron
- Beam
- Reinforced steel beam
- Working accuracy
- ±0.02mm
- Re-positioning accuracy
- ±0.05mm
- Dictate format
- G-Code / HPGL
- Working voltage
- AC380V/ 3PH/ 50HZ
- Category
- CNC Wood Routers in China
- Subcategory
- Woodworking machinery
- Subcategory 2
- Woodworking engraving machine
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 103572023
Description

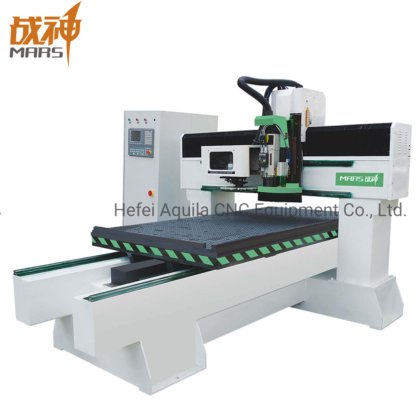

Stable Table Moving Woodworking CNC Router Machine
Keywords:20 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brand: Mars, Golden Eagle,Borio
Stable Table Moving Woodworking CNC Router Machine is MARS featured machine for processing molded doors, wooden windows, wooden cabinet, wood panels. MARS design it for many years, now popular in the market, it's economic machining center of woodworking cutting machine.
Functions:
The functions of this machine include milling on artificial stone,wood,bamboo and etc,processing of various patterns and characters.
Applicable Materials:
Artificial stone,wood,bamboo,marble,organic board,two-color board,etc..
Application Scope:
Cabinet doors,wooden doors,solid wood,panels,doors&windows,tables &chairs,screens,wave panels,large wall hangings,advertising panels,logo&sign making.
Parameters:
Basic, X/Y/Z Axis Working Area, 1230*2450*230mm
$24,999 USD
