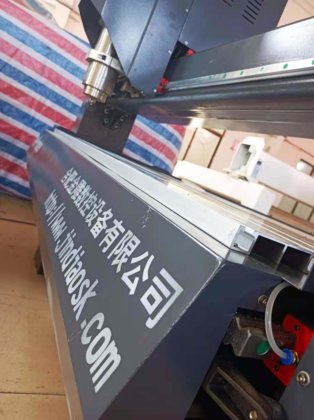

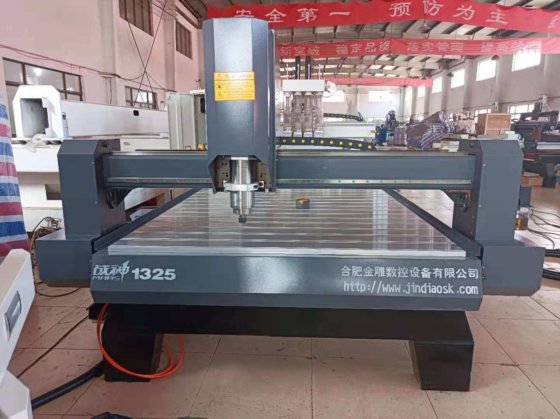

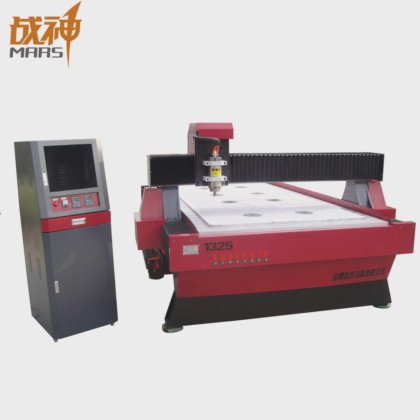

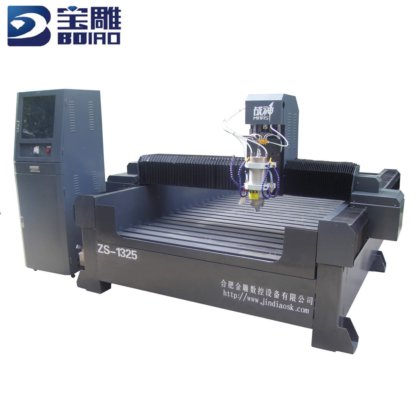

Mars-Zs1325 CNC Router with Tool Change High Precision CNC Router Wood CNC Router in Anhui, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Certification
- ISO, CE, Ce, ISO 9001
- Cnc or not
- CNC
- Voltage
- 380V
- Process usage
- CNC Non-Conventional Machine Tools
- Movement method
- Linear Control
- Control method
- Open-Loop Control
- Numerical control
- CNC/Mnc
- Processing precision
- 0.01~0.02(mm)
- Performance classification
- High-End CNC Machine Tools
- Application
- Wood/Acrylic/PVC
- Transport package
- Plywood Case Package
- Specification
- 1230*2450mm
- Hs code
- 8458110090
- Production capacity
- 300 Sets/Month
- Machine size
- 2700*2100*2000mm
- Table structure
- T-slot aluminum
- Body structure
- Heavy-duty thicken steel structure with tempering
- Drive system
- Easy servo motor with reducer
- Transmission
- XY axis rack and pinion, Z axis ball screw
- Guide rail
- Taiwan TBI 25mm square guide
- Inverter
- Taiwan Delta inverter
- Beam
- Reinforced steel beam
- Electronic components
- French Schneider
- Max travelling speed
- 20m/min
- Max processing speed
- 10m/min
- Working accuracy
- ±0.02mm
- Re-positioning accuracy
- ±0.05mm
- Dictate format
- G-Code / HPGL
- Working voltage
- AC380V/ 3PH/ 50HZ
- Feeding height
- 160mm-250mm
- Net weight
- 1500KG
- Category
- CNC Wood Routers in China
- Subcategory
- Woodworking machinery
- Subcategory 2
- Woodworking engraving machine
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 103571546
Description
ZS1325 Wood CNC Engraving Machine with High Precision
Keywords:15 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brand: Mars, Golden Eagle,Borio
ZS1325 Wood CNC Engraving Machine with High Precision is MARS featured machine for processing molded doors, wooden windows, wooden cabinet, wood panels. MARS design it for many years, now popular in the market, it's economic machining center of woodworking cutting machine.
Functions:
The functions of this machine include cutting,milling,drilling and slotting.
Applicable Materials:
Acrylic, PVC, MDF(density board), artificial stone, organic glass, and other soft-metal sheets made of aluminum or copper and etc.
Application Scope & Samples:
Be widely used for panel processing, panel furniture, computer desk, office furniture, wooden speaker, wooden kitchen ware, customized wardrobe, modern cabinets, and so on
Optional Accessories
