S300 CNC Nesting Machine Engraving Machine Intelligent Operation Automatic Tool Change CNC Machine Woodworking CNC Machine in Anhui, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Certification
- ISO, CE, Patent Certification
- Cnc or not
- CNC
- Voltage
- 380V
- Configuration
- 9kw Air Cooling Spindle + Circular Tool Change + D
- Table structure
- Vacuum Table
- Drive motor
- Yaskawa/ Delta
- Control system
- Syntec
- Transport package
- Wrapped in Layers of Wrapping Film and Ponchos
- Specification
- 1300*2500*300mm
- Hs code
- 8465990000
- Production capacity
- 3000 Sets/Year
- Machine size
- 3700*3100*1900mm
- Body structure
- Heavy-duty thicken steel structure w/ tempering
- Drive system
- Japan Yaskawa servo motor
- Spindle motor power
- 9KW air cooling spindle; 0 ~ 24000 rpm/min
- Drilling head
- Italy HSD 5+4 gang drill
- Guide rail
- Taiwan PMI/Hiwin 25mm rectangular linear rail
- Inverter
- Zoncn/Delta/Fuling brand
- Vacuum pump
- 1*5.5KW water vacuum pump
- Beam
- Reinforced steel beam
- Max processing speed
- 30m/min
- Working accuracy
- ±0.02mm
- Dictate format
- G-Code / HPGL
- Working voltage
- AC380V/ 3PH/ 50HZ
- Net weight
- 3000KG
- Category
- Engraving Machines in China
- Subcategory
- Woodworking machinery
- Subcategory 2
- Woodworking engraving machine
- Subcategory 3
- Cnc woodworking engraving machine
- Subcategory 4
- Manufacturing & processing machinery
- Listing ID
- 103571137
Description

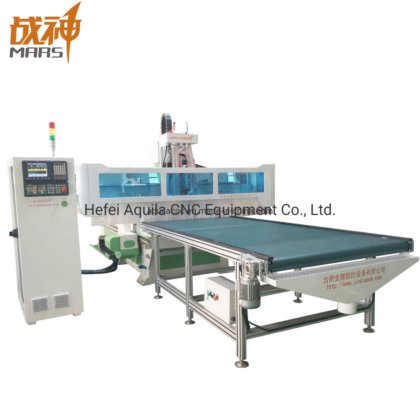

China Superior S300 Nesting CNC Machining Center Engraving Machine
Keywords:15 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brand: Mars, Golden Eagle,Borio
China Superior S300 Nesting CNC Machining Center Engraving Machine is MARS featured machine for processing molded doors, wooden windows, wooden cabinet, wood panels. MARS design it for many years, now popular in the market, it's economic machining center of woodworking cutting machine.
Functions:
The functions of this machine include plane cutting,milling,chamfering,punching,engraving and other anxiliary processing.
Applicable Materials:
MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc.
Application Scope:
Cabinet doors, wooden doors, solid wood, panels, doors, windows, tables, chairs, folding screens, waved plate, large wall hangings, advertising boards, sign makings.
Parameters:
Basic, X/Y/Z Axis Working Area, 1230*2450*200mm
$25,999 USD
