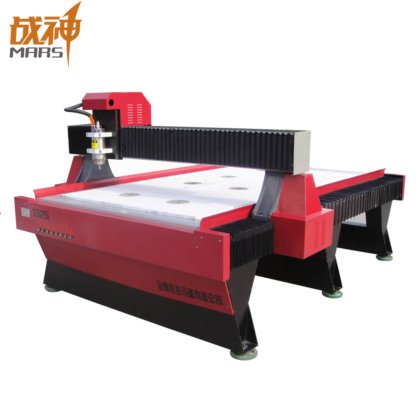

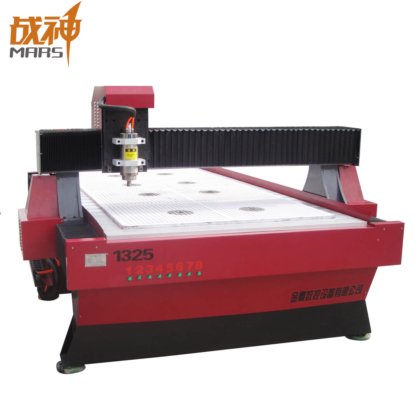

Mars-Woodworking CNC Router Machine/Wood Cutting CNC Milling Machine CNC Cutting Machine CNC Panel Cutting Machine CNC Machine with Tool Change in Anhui, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Certification
- ISO, CE
- Cnc or not
- CNC
- Voltage
- 380V
- Transport package
- Plywood Case Package
- Specification
- 1800KG
- Hs code
- 8458110090
- Production capacity
- 300 Sets/Month
- Working stoke
- 1300*2500*160mm
- Feeding height
- 160mm-250mm
- Table structure
- T-slot aluminum
- Body structure
- Thick steel tube welded, w/ tempering
- Max motion speed
- 20m/min
- Max processing speed
- 10m/min
- Spindle speed
- 0 ~ 24000 rpm/min
- Control system
- NC Studio
- Drive system
- Stepper motor for all 3 axis
- Lubrication system
- Manual/ Automatic
- Transmission
- XY axis rack and pinion, Z axis ball screw
- Guide rail
- Taiwan rectangular linear rail
- Max travelling speed
- 20m/min
- Max working speed
- 10m/min
- Engraving tool
- ¢3.175/ 4/ 6/ 12.7mm
- Dictate format
- G code/ HPGL
- Working accuracy
- ±0.02mm
- Re-positioning accuracy
- ±0.05mm
- Category
- CNC Wood Routers in China
- Subcategory
- Woodworking machinery
- Subcategory 2
- Woodworking engraving machine
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 103571005
Description
Woodworking CNC Router Machine/Wood Cutting CNC Milling Router Machine
Keywords: 15 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brands: Mars, Golden Eagle, Boiro
Technicist who go abroad to offer after-sale service
Technical Parameters:
Spindle Power, 2.2KW ~ 9KW frequency water-cooling spindle, (Air-cooling motor, or Italy imported HSD motor is optional)
Applicable Scope:
Cabinet doors, wooden doors, solid wood, panels, doors, windows, tables, chairs, folding screens, waved plate, large wall hangings, advertising boards, sign makings
Applicable Materials:
Artificial stone, wood, bamboo, marble, organic board, color plates and other materials.
Package and Shipment:
Company Show:
Hefei Aquila CNC Equipment Co., Ltd locat in the beautiful hometown of Lord Bao- Hefei, Anhui Province. Covering an area of 20,000 square meters,
$18,000 USD
