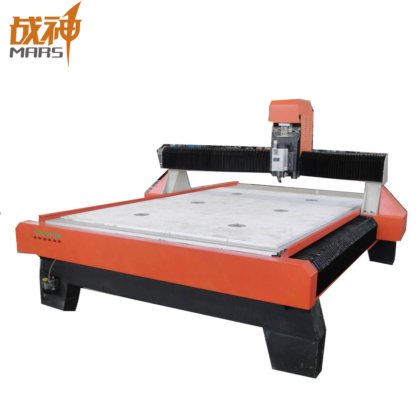

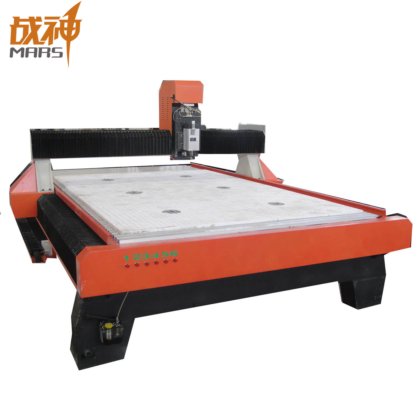

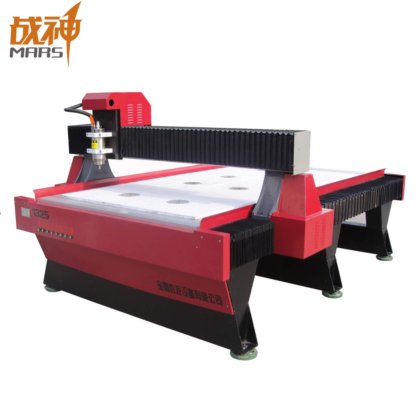

Mars-CNC Machine/Woodworking CNC Carving Machine/CNC Nesting Machine/CNC Lathe Machine Heavy Duty High Speed Customizable in Anhui, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Certification
- ISO, CE
- Cnc or not
- CNC
- Voltage
- 380V
- Transport package
- Plywood Case Package
- Specification
- 1300*2500mm
- Hs code
- 84659900
- Working stoke
- 1300*2500*160mm
- Feeding height
- 160mm-250mm
- Table structure
- T-slot aluminum
- Body structure
- Thick steel tube welded, w/ tempering
- Max motion speed
- 20m/min
- Max processing speed
- 10m/min
- Spindle speed
- 0 ~ 24000 rpm/min
- Control system
- NC Studio
- Drive system
- Stepper motor for all 3 axis
- Lubrication system
- Manual/ Automatic
- Transmission
- XY axis rack and pinion, Z axis ball screw
- Guide rail
- Taiwan rectangular linear rail
- Max travelling speed
- 20m/min
- Max working speed
- 10m/min
- Engraving tool
- ¢3.175/ 4/ 6/ 12.7mm
- Dictate format
- G code/ HPGL
- Working accuracy
- ±0.02mm
- Re-positioning accuracy
- ±0.05mm
- Category
- CNC Lathes in China
- Subcategory
- Woodworking machinery
- Subcategory 2
- Woodworking engraving machine
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 103570690
Description
Woodworking CNC Carving Machine/CNC Cutting Machine
Keywords: 15 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brands: Mars, Golden Eagle, Boiro
Technicist who go abroad to offer after-sale service
Parameters:
Spindle Power, 2.2KW ~ 9KW frequency water-cooling spindle, (Air-cooling motor, or Italy imported HSD motor is optional)
Applicable Scope:
Classical mahogany furniture, white wood European furniture, carved antique furniture, wall hollow,
solid wood doors, craft doors,Paint-free doors, cabinet doors, craft windows, variety of tables, sofas,
panel furniture, advertising signs, sign making, acrylic cutting, blister light boxes, curtain walls, aluminum,
copper, composite board and other non-ferrous metals.
Package and Shipment
Company show
Hefei Aquila CNC Equipment Co., Ltd locat in the beautiful hometown of Lord Bao- Hefei, Anhui Province.
