Linear Tool Change Atc CNC Router Machine/Automatic Wood Carving Machine Customizable Carving Machine in Anhui, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Certification
- ISO, CE
- Cnc or not
- CNC
- Voltage
- 380V
- Transport package
- Wrapped in Layers of Wrapping Film and Ponchos
- Specification
- 1300*2500*300mm
- Hs code
- 8465990000
- Production capacity
- 3000 Sets/Year
- X/y/z axis working stroke
- 1300*2500*300mm

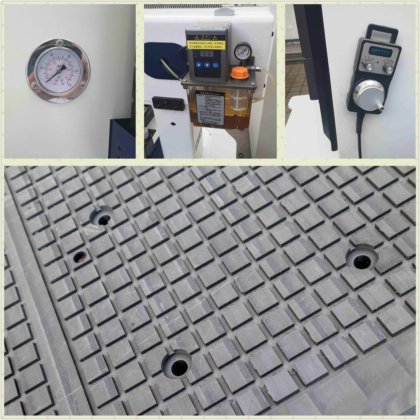

- Table surface
- vacuum Table
- Spindle power
- 9KW Italy HSD ATC air cooling spindle
- Spindle speed
- 0-24000 rpm
- Automaitc tool change
- Straight, 8pcs
- Control system
- Taiwan Syntec 4 axis control System
- Drive sytem
- Japan Yaskawa servo motor & driver
- Transmission
- X/Y axis helical rack & pinion, Z axis ball screw
- Guide rail
- Taiwan imported linear guide rail
- Vacuum pump
- 7.5kw vacuum pump
- Inverter
- Fuling or Zoncn
- Oil lubrication
- Automatic
- Positioning accuracy
- ± 0.03mm
- Category
- Woodworking equipment in China
- Subcategory
- Woodworking machinery
- Subcategory 2
- Woodworking engraving machine
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 103570562
Description

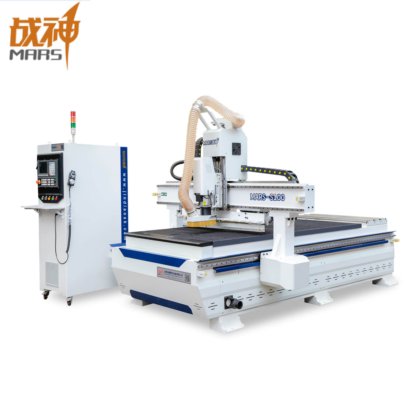

Linear Tool Change Atc CNC Router Machine/Automatic Wood Carving Machine
Keywords:15 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brand: Mars, Golden Eagle,Borio
Linear Tool Change Atc CNC Router Machine/Automatic Wood Carving Machine is MARS featured machine for processing molded doors, wooden windows, wooden cabinet, wood panels. MARS design it for many years, now popular in the market, it's economic machining center of woodworking cutting machine.
Functions:
The functions of this machine include cutting,milling,drilling and slotting.
Applicable Materials:
MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc..
Application Scope:
Cabinet doors, wooden doors, solid wood, panels, doors, windows, tables, chairs, folding screens, waved plate, large wall hangings, advertising boards, sign makings.
Parameters:
Model, Linear Tool Change Atc CNC Router Machine/Automatic Wood Carving Machine
$12,999 USD
