S100 Atc Woodworking CNC Router Center CNC Machine with Linear Atc Tool Change Customizable CNC Lathe Machine in Anhui, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Certification
- ISO, CE
- Cnc or not
- CNC
- Voltage
- 380V
- Table structure
- Vacuum Table
- Spindle speed
- 0-24000 rpm
- Working voltage
- AC380/3pH/50Hz
- Configuration
- 9kw Spindle with Linear Atc
- Transport package
- Wrapped in Layers of Wrapping Film and Ponchos
- Specification
- 1300*2500*300 mm
- Hs code
- 84659900
- Production capacity
- 300 Sets/Month
- X/y/z axis working stroke
- 1300*2500*100mm
- Table surface
- vacuum Table
- Spindle power
- 9KW Italy HSD ATC air cooling spindle

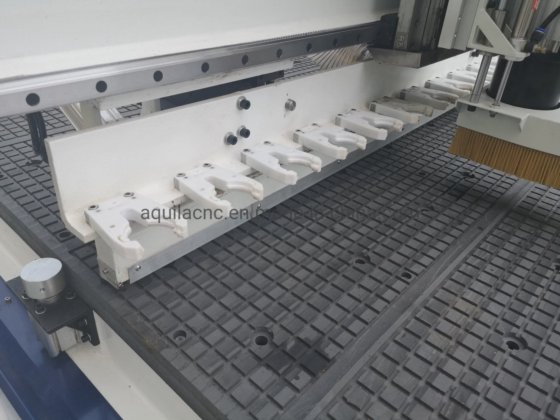

- Automaitc tool change
- Straight, 8pcs
- Control system
- Taiwan Syntec 4 axis control System
- Drive sytem
- Japan Yaskawa servo motor & driver

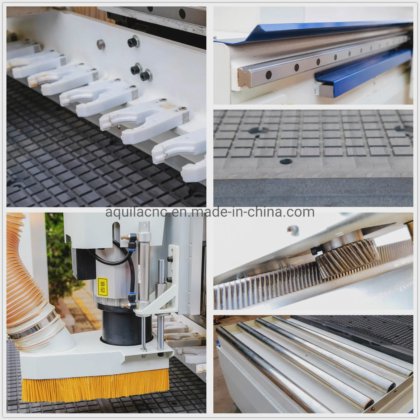

- Transmission

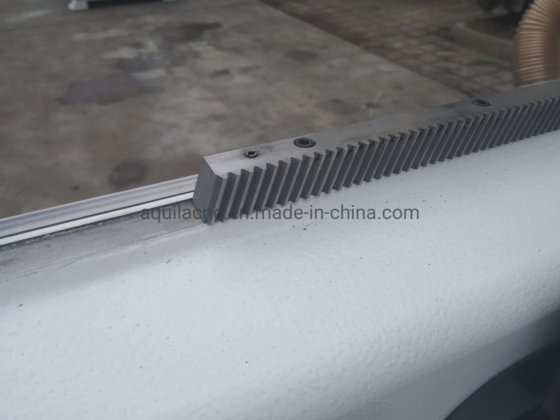

- X/Y axis helical rack & pinion, Z axis ball screw
- Guide rail
- Taiwan imported linear guide rail
- Vacuum pump
- 7.5kw vacuum pump
- Inverter
- Fuling or Zoncn
- Oil lubrication
- Automatic
- Positioning accuracy
- ± 0.03mm
- Category
- CNC Lathes in China
- Subcategory
- Woodworking machinery
- Subcategory 2
- Woodworking engraving machine
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 103569697
Description

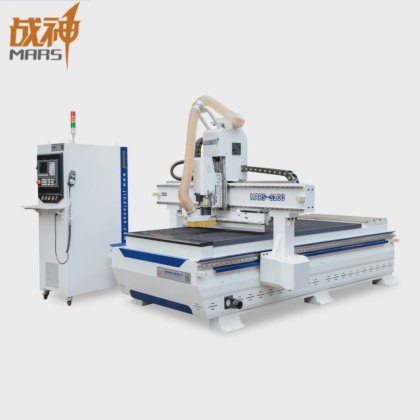

S100 ATC woodworking CNC router center machine with linear ATC
Keywords:15 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brand: Mars, Golden Eagle,Borio
S100 Linear Type ATC Tool Change Machining Center is MARS featured machine for processing molded doors, wooden windows, wooden cabinet, wood panels. MARS design it for many years, now popular in the market, it's economic machining center of woodworking cutting machine.
Functions:
The functions of this machine include cutting,milling,drilling and slotting.
Applicable Materials:
MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc.
Application Scope:
Cabinet doors, wooden doors, solid wood, panels, doors, windows, tables, chairs, folding screens, waved plate, large wall hangings, advertising boards, sign makings.
Parameters:
Model, S100 ATC woodworking cnc router center machine with linear ATC
