Automatic Ribbon Mixer Feed Mixer Machine Farm Double Ribbon Mixer in Guangdong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Additional capabilities
- Coating, Drying, Granulating, Milling
- Application
- Granules, Liquid, Liquid with Suspended Solids, Powder, Viscous Fluid
- Shipping cost
- Contact the supplier about freight and estimated delivery time.
- Secure payments
- Every payment you make on is protected by the platform.
- Refund policy
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
- Application area
- Chemical
- Certification
- CE, ISO
- Mixing drum shape
- Conical
- Working
- High Speed Mixer
- Electric control
- Button / PLC
- Heating / cooling
- Jacket
- Capacity
- 50-30000L
- Applied industry
- Food, Chemical, Pharmaceutical, Energy
- Mixer type
- Powder Mixer
- Stirring type
- Spiral
- Layout type
- Horizontal
- Operating type
- Continuous Operating
- Transport package
- by Sea
- Specification
- 300
- Hs code
- 8474320000
- Production capacity
- 500 Pieces/Year
- Category
- Feeder & Mixer Wagons in China
- Subcategory
- Paddle mixer
- Subcategory 2
- Mixing equipment
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 103521990
Description
Product Description

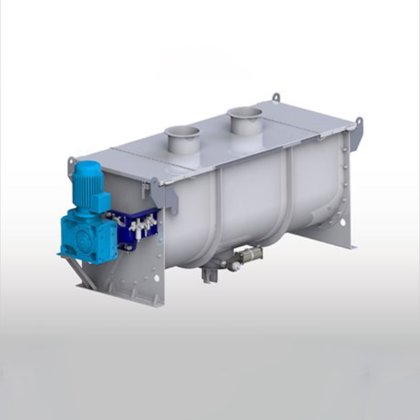

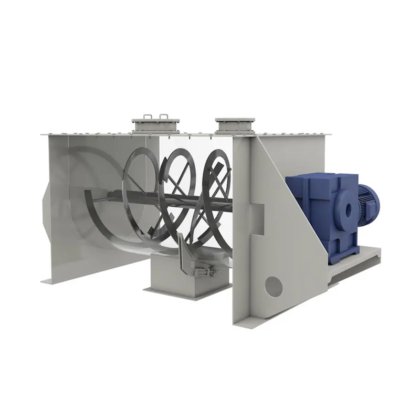

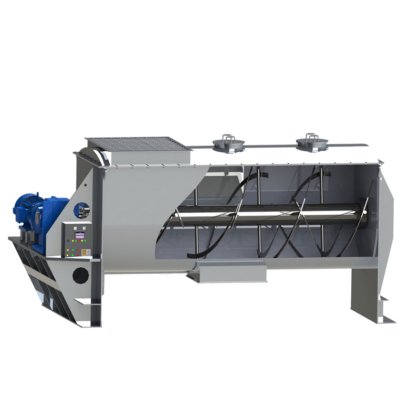

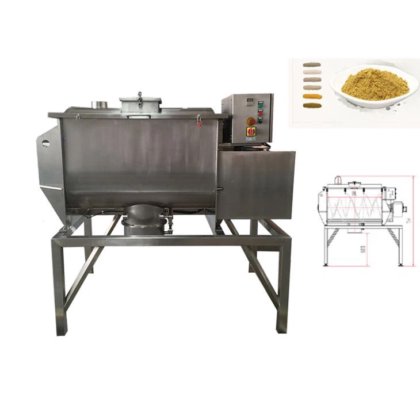

Horizontal Double Ribbon Mixer
Horizontal Ribbon Mixer is a late-model mixing equipment with high efficiency, high uniformity, high loading coefficient but low energy cost, low pollution and low crush. The special design of double ribbon mixer the materials into high uniformity in a few minutes. On the other hand, ribbon mixer shows a wide application from powder mixing, powder-liquid, to paste or materials in high specific gravity (such as putty, really stone paint, metal powder and other materials) and becomes one of the most popular single shaft horizontal mixing equipment.
Model
Power
Speed
working capacity/ Batch
Dimension
mixer weight
(kw)
(rpm)
(kg)
(mm)
(kg)
JCT-0.1
3
41
40-60
1190×740×770
330
JCT-0.3
4
41
120-180
2300×680×1060
550
JCT-0.5
5.5
41
200-300
2900×780×1240
900
JCT-1
11
