Ck6170 Horizontal CNC Lathe with 5-Axis Function Flat Bed Lathe in Zhejiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- 24 Hour Online Technical Support
- Application
- Metal
- Process usage
- Metal-Cutting CNC Machine Tools
- Movement method
- Point to Point Control
- Control method
- Closed-Loop Control

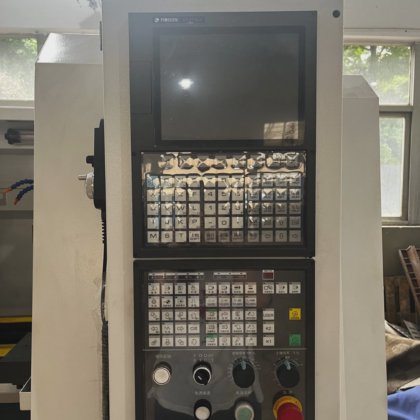

- Numerical control
- CNC/MNC
- Processing precision
- 0.01~0.02(mm)
- Performance classification
- Economical CNC Machine Tools
- Certification
- CE

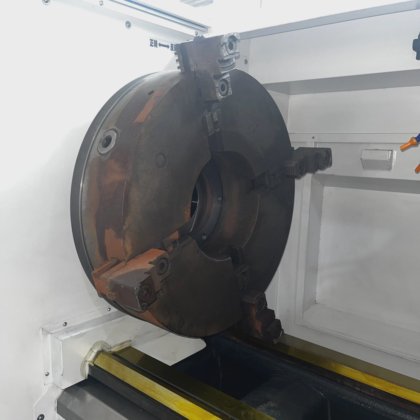

- Chuck size
- K11-500
- Max swing over bed
- 780mm
- Bed guide rail width
- 490mm
- Max machining length
- 950 mm
- Spindle bore
- 105 mm
- Spindle nose
- C11
- Spindle taper
- Metric No. 90
- Spindle speed range
- 45–1600 Rpm (3-Step Stepless)
- Main motor power
- 15 Kw
- X-axis travel
- 560 mm
- Z-axis travel
- 950 mm
- Rapid traverse speed (x/z)
- 6 / 8 M/Min
- Tool turret type
- Electric
- Tool positions
- 4
- Tool holder size
- 32 × 32 mm
- Transport package
- Seaworthy Packing
- Specification
- 3000*1700*1800mm
- Hs code
- 8458110000
- Production capacity
- 1500 Sets/Year
- Category
- CNC Lathes in China
- Subcategory
- Machine tools
- Subcategory 2
- Cnc machine tools
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 103372810
Description
Product Description
CK6170 CNC Lathe - Technical Overview
Integrated Bed Structure
The machine adopts an integrated bed and base design, manufactured using resin sand casting technology. After aging treatment, the structure offers excellent stability. The guideways are induction-hardened for wear resistance, and key sliding surfaces are coated with plastic to eliminate stick-slip, improving movement accuracy and long-term precision retention. Both X and Z axes adopt a three-support structure for enhanced rigidity.
Functional Highlights
Overall Design
The CK6170 lathe features a compact and rational mechatronic structure. All key components and assemblies are sourced from internationally recognized brands to ensure machining accuracy and operational reliability.
