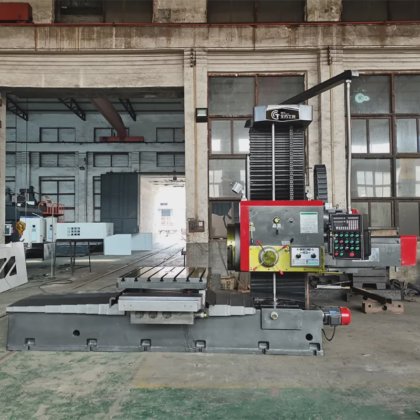

Horizontal CNC Boring and Milling Metal Processing Machine Tools in Hebei, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Video Technical Support, Online Support
- Shipping cost
- Contact the supplier about freight and estimated delivery time.
- Secure payments
- Every payment you make on is protected by the platform.
- Refund policy
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
- Structure
- Horizontal Boring Machine
- Coordinate boring machine type
- Horizontal Type
- Controlling mode
- CNC
- Precision
- High Precision
- Automatic grade
- Automatic
- Certification
- CE, ISO 9001
- Spindle diameter
- 110mm
- Spindle taper
- Morse 6 (ISO 7:24 No50)
- Transverse travel of worktablel--x axis
- 1000mm
- Headbox travel--y axis
- 1100mm
- Table horizontal travel--z axis
- 1000mm
- Spindle speed level
- 22
- Speed number of radial facing slide
- 18
- Max.torque of spindle
- 1225n.M
- Max.torque of facing slide
- 12250n
- Rapid traverse speed of pindle.headstock
- 2500mm/Min
- Worktable rotation angle
- 360°
- Main motor power
- 7.5kw
- Worktable size
- 1200mm*1400mm
- Max.permissible load of table
- 3000kg
- Weight
- 14500kg
- Transport package
- Wooden Packing
- Specification
- 380.00cm * 170.00cm * 150.00cm
- Hs code
- 8459410000
- Production capacity
- 100 Sets/Year
- Category
- Boring Mills in China
- Subcategory
- Machine tools
- Subcategory 2
- Boring machine
- Subcategory 3
- Horizontal boring machine
- Subcategory 4
- Manufacturing & processing machinery
- Listing ID
- 103112441
Description
CNC Horizontal Boring Mills Universal Boring and Milling Machine CNC Heavy Duty CNC Boring Milling Machine
Product Parameters
Model/Specifications
Units
TPX6111B
TPX6111B/2
TPX6111B/3
Spindle diameter
mm
110
Spindle taper
Morse 6 (ISO 7:24 No50)
Spindle speed level
steps
22
Spindle speed
r/min
8~1000
Facing head diameter
mm
600
Max.torque of spindle
N.m
1225
Max.torque of facing slide
N
12250
Max travel of spindle
mm
600
of radial facing slide
mm
180
Max.permissible load of table
Kg
2500
3000
3000
Speed number of radial facing slide
steps
18
Speed range of radial facing slide
r/min
4~200
Rapid traverse speed of pindle.headstock. cross & longitudinal saddles
mm/min
2500
Worktable Size
mm
$72,980 USD
