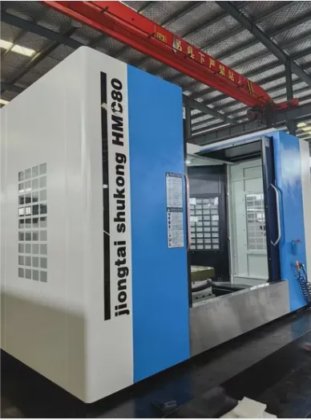

Hmc80 Horizontal Machining Center High Efficiency and High Precision CNC Machining Solutions in Zhejiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- 1 Year
- Application
- Metal
- Process usage
- Metal-Cutting CNC Machine Tools
- Movement method
- Point to Point Control
- Control method
- Closed-Loop Control
- Numerical control
- CNC/MNC
- Processing precision
- 0.01~0.02(mm)
- Performance classification
- High-End CNC Machine Tools
- Certification
- CE, ISO 9001
- Maximum worktable load capacity
- 1500kg
- Tool libranes
- 21 Arm Type Tool Libranes
- Precision
- High Precision
- Standard system
- Fanuc
- Transport package
- Seaworthy Packing
- Specification
- 4300*2250*2800mm
- Hs code
- 8458110000
- Production capacity
- 1500sets/Year
- Category
- Machining Centers in China
- Subcategory
- Machine tools
- Subcategory 2
- Cnc machine tools
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 103109498
Description
Product Description
HMC80 Horizontal Machining Center is a high-precision, high-efficiency CNC machine tool designed for batch processing of complex parts. The equipment adopts high rigid structure, high speed spindle and advanced CNC system to ensure stability and machining accuracy, and is widely used in aerospace, automobile manufacturing, mold processing, construction machinery and other industries.
1.High rigid structure design
The main body of the machine is made of high-quality cast iron, which is aged to ensure long-term stability and vibration resistance.
The advanced frame structure optimizes the force distribution and improves the overall rigidity.
High efficiency spindle system
Using high-precision motorized spindle, the maximum speed can reach 12,000 rpm (higher speed is optional).
Bearings adopt imported P4 high precision bearings to ensure low vibration and high stability.
With large torque output, suitable for heavy cutting and high-speed machining.
