High Precision CNC Lathe Machine with Linear Guides for Rigidity in Zhejiang, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- 24 Hour Online Technical Support
- Application
- Metal
- Process usage
- Metal-Cutting CNC Machine Tools
- Movement method
- Point to Point Control
- Control method
- Closed-Loop Control
- Numerical control
- CNC/MNC
- Processing precision
- 0.01~0.02(mm)
- Performance classification
- Economical CNC Machine Tools
- Certification
- CE, ISO 9001
- Weight
- 3200kg
- Precision
- High Precision
- Main motor power
- 7.5kw
- Standard chuck
- Maunal Chuck
- Transport package
- Seaworthy Packing
- Specification
- 1900*1500*1650mm
- Hs code
- 8458110000
- Production capacity
- 1500 Sets/Year
- Category
- CNC Lathes in China
- Subcategory
- Machine tools
- Subcategory 2
- Cnc machine tools
- Subcategory 3
- Manufacturing & processing machinery
- Listing ID
- 103109088
Description
Product Description

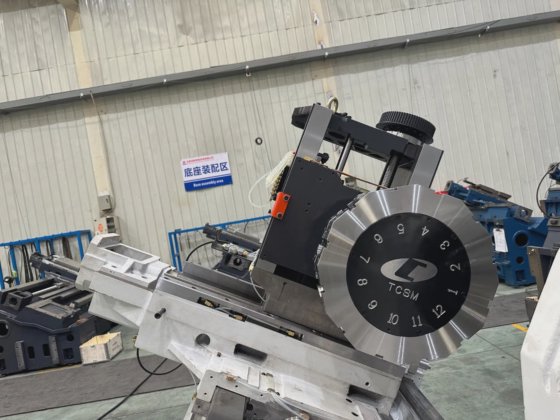

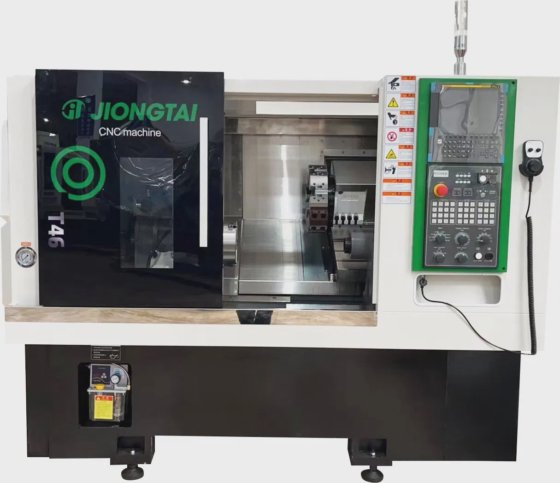

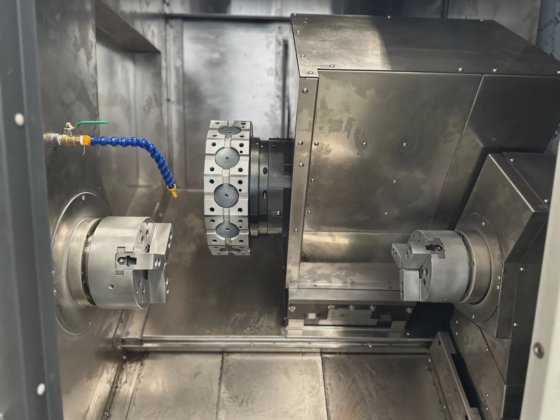

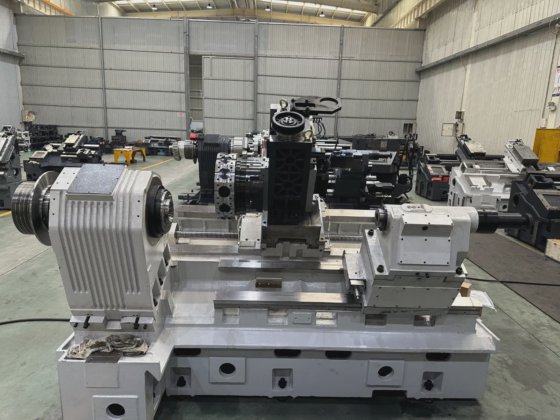

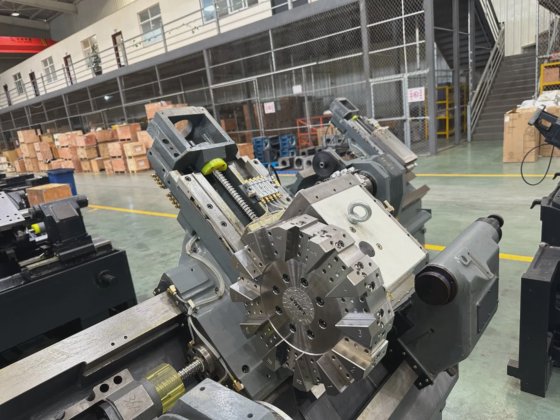

The T46 slant-bed CNC lathe features a one-piece cast bed and slant guide rails for excellent rigidity and vibration absorption,ensuring high-precision uses an AC servo motor with a V-belt direct drive spindle for low noise.The spindle has precision high-speed bearings and a box-type support for high-speed operation.Equipped with a multi-position or powered turret, it can machine complex parts like cylinders,threads
,
slots,and worms,offering linear and arc interpolation for mass production.An optional high-rigidity hydraulic servo turret provides greater reliability and repeatability.
Product Parameters
Model
Specification
JT-T46
Control System
Guangshu 980TB3i
Maximum swing diameter over the bed
mm
500
Maximum swing diameter
over the cutterhead
mm
400
Maximum machining length
mm
460
Spindle head type
GB59001
A2-6
Spindle through-hole diameter
mm
