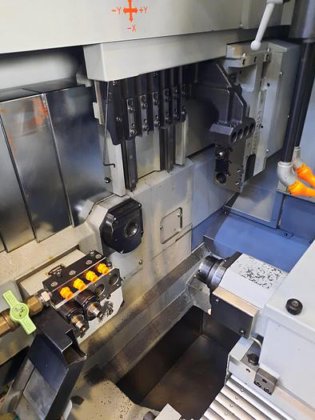

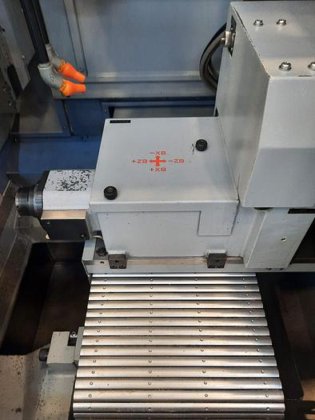

STAR SR 20 R II SWINGING HEADSTOCK LATHE in Cologno Monzese, Lombardy, Italy
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Year
- 2005
- Stock number
- 00048
- Max. diameter turnable
- mm. 20
- Max. travel of sliding headstock (single-tightening)
- mm. 205
- Fixed tool
- M 8 x 1.25
- Rotating tool on comb slide
- M 6×1
- End mill on comb slide
- Ø 10
- Spindle hole diameter
- Ø 20
- Spindle revolutions
- RPM 8000
- Main spindle power
- Kw 3.7
- Max grip and passage diameter
- Ø 20
- Power available
- Kw 2.2
- Max piece length with front ejection
- 80 mm
- Rapid axis advances
- m/min 20
- C-axis rapid advances
- degrees/min 90000°
- Maximum work progress linear axes
- m/min 10
- Maximum c-axis work feed
- degrees/min. 10000°
- Std (opt) fixed turning tool seats
- n 6
- Std tool shank dimensions (opt)
- mm. 12
- Seats for radial motorized units
- m 4
- Max speed of motorized units
- rpm 8000
- Max. power available
- Kw 1.2
- Fixed drilling/tapping tool holders
- n. 4
- Max. clamping diameter with er collet
- 10 mm
- Max drilling capacity (c45 steel)
- 8mm
- Fixed drilling/tapping tool seats
- n. 4
- Max tapping capacity (c45 steel)
- M 6×1
- Tank capacity
- l 155
- Max height
- m 1,70
- Max. floor space requirements
- m 2.21 x 1.08
- Machine weight
- Kg 2200
- Total installed power
- KvA 7
- Category
- CNC Lathes in Italy
- Subcategory
- Turning
- Listing ID
- 102899970
Description
The used STAR SR 20 R II sliding headstock lathe represents a solid choice for professionals in the metalworking sector.
turning. Equipped with a FANUC 18i – TB control unit, it offers a wide range of accessories including a loader
IEMCA BOSS 338-HD, various tools and a workpiece unloading mat. This model offers a turning capacity with a
maximum diameter of 20 mm and a sliding headstock stroke of 205 mm, allowing precision machining with a
rapid axis feed capacity up to 20 m/min.
The main spindle of the lathe is capable of reaching a rotation speed of 8000 rpm and has a
power of 3.7 kW, while the total available power reaches up to 2.2 kW. The equipment supports tools of
dimensions M 8 x 1.25 for turning operations and M 6×1 for rotating operations, facilitating flexibility in the
machining applications.
With overall dimensions of 2.21m x 1.08m and a weight of 2200kg, this lathe is well suited to various
workshop configurations. The machine is equipped with a tank capacity of 155 litres and offers an operating environment
stable with a maximum height of 1.70 m. The installation requires a power supply with an installed power
total of 7 kVA. This lathe combined with its robust construction is ideal for intensive work and offers precision
and reliability.
Seller Reviews
$43,189 USD
