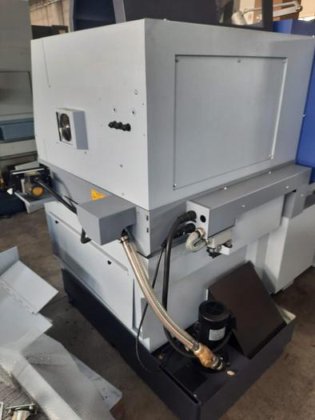

STAR SR 32 J SWINGING HEADSTOCK LATHE READY FOR DELIVERY in Cologno Monzese, Lombardy, Italy
Refurbished
Doubleclick to zoom in
Specifications
- Condition
- refurbished
- Year
- 2005
- Max. diameter turnable
- mm. 32
- Max. travel of sliding headstock (single-tightening)
- mm. 310
- Fixed tool
- M 12×1,75
- Rotating tool on comb slide
- M 6×1
- End mill on comb slide
- Ø 10
- Spindle hole diameter
- Ø 38
- Spindle revolutions
- rpm. 350/7.000
- Power available
- Kw 3.7/2.2
- Compass
- Neukomm art.28.001 (804 )
- Clamp
- F 37 - art.740
- Max grip and passage diameter
- Ø mm. 32
- Max piece length with front ejection
- mm. 120
- Rapid axis advances
- m / min. 24
- Std fixed turning tool seats
- n. 6
- Std tool shank dimensions
- mm. 16
- Seats for radial motorized units
- n. 4
- Max. speed of motorized units
- RPM. 5.000
- Max. power available
- Kw 1
- Fixed drilling/tapping tool holders
- n. 4
- Max. clamping diameter with er collet
- mm. 10 / 13
- Clamping diameter with er 16/20 collet
- mm 10/13
- Max drilling capacity (c45 steel)
- mm 13
- Max tapping capacity (c45 steel)
- M 10x P 1.5
- Tank capacity
- l 100
- Check coolant level
- standard
- Max. floor space requirements
- m 2.52 x 1.70
- Machine weight
- Kg 2800
- Total installed power
- KvA 15
- Category
- CNC Lathes in Italy
- Subcategory
- Turning
- Listing ID
- 102899969
Description
This completely overhauled STAR SR 32 J sliding headstock lathe offers excellent performance thanks to the control
FANUC 18i – TB. The machine was carefully dismantled, with the base cleaned and repainted, and the
replaced all components subject to wear, including ball screws, bearings and belts. The systems
Axle lubrication and air are completely new, ensuring optimal operation.
The lathe has a maximum turning diameter of 32 mm and a sliding headstock stroke of up to 310 mm. It is equipped with a
conveyor for machined parts, chip conveyor and a fire protection system. It comes with various tools and a
IEMCA BOSS 332-32 E bar loader. The main technical specifications include an available power of
3.7/2.2 KW, a spindle with a speed of up to 7,000 rpm, and a total weight of 2800 kg. The machine includes
also a tub, transformer and instruction manuals.
This solution is ideal for high precision machining, particularly suitable for those who require reliability.
and high performance in a modern workshop, with a coolant tank capacity of 100 litres and a
maximum footprint of 2.52 x 1.70 meters. It is ready for immediate delivery, with all CE certifications
necessary.
