CAP CODER - Capping Machine - CC560 in Bologna, Emilia-Romagna, Italy
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Year
- 2004
- Serial number
- MLTC-02-018
- Stock number
- MLTC-0002-WH
- Subcategory
- Capping machine
- Listing ID
- 102621514
Description

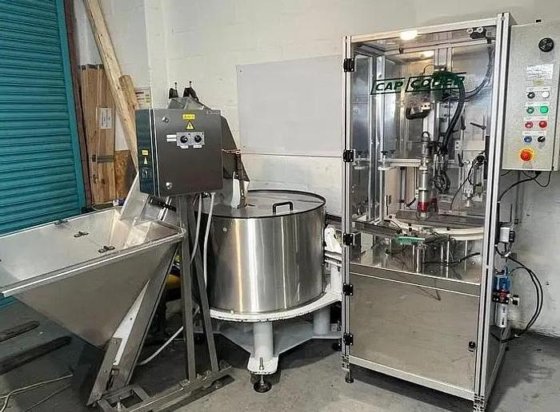

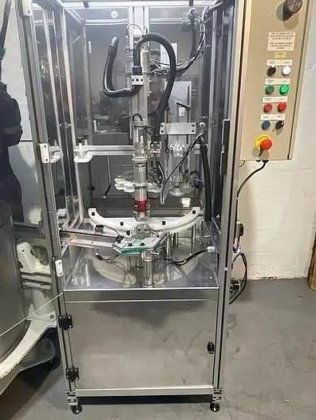

CAP CODER TWIN HEAD SCREW CAPPING MACHINE, MODEL CC560
Year of construction: 2004
Twin head capper suitable for a wide range of containers/caps (depending on format parts fitted).
PRODUCTION CHARACTERISTICS
- Speed: up to 40 containers/min (depending on container/cap size; currently set up for 43mm caps)
- Container size range: 25 ml to 5 lt (with a maximum height of 320 mm)
- Cap diameter range: 10 - 65 mm
- Indexing capper
- Auto cap placement

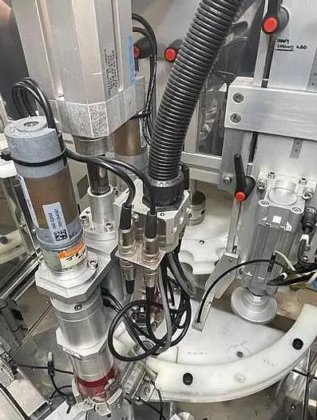

- Servo capping head
- 3 production modes: pick and place screw caps; pick and place push on caps; pre placed screw caps
MACHINE DIMENSIONS
Capper
- Size: 970 mm x 1000 mm x 1920 mm
- Weight: 251 kg
Elevator
- Size: 1400 mm x 1040 mm x 1100 mm
- Weight: 132 kg

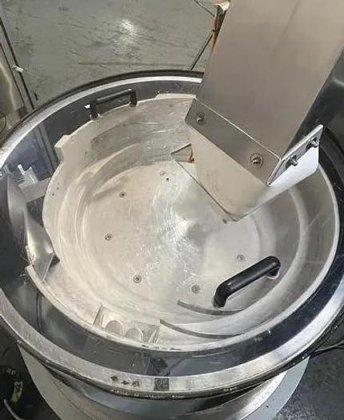

Bowl
- Size: 1500 mm x 900 mm x 1660 mm
- Weight: 402 kg
ENERGY CONSUMPTION
- Electricity: 240v, 3 pin
- Air consumption: 4 bar
