ROCK DRILLING MACHINE in Fujian, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Power type
- Electric
- Place of origin
- Fujian China
- Use
- mining
- Voltage
- 380V
- Dimension(l*w*h)
- 280CM*68CM*72CM
- Weight
- 600 KG
- Machinery test report
- Provided
- Video outgoing-inspection
- Provided
- Core components
- motor
- Key selling points
- High-accuracy
- Drilling diameter
- 90MM
- Drilling depth
- Max.40m
- Diameter of drill hole
- 90mm
- Max depth of drill hole
- 30m
- Drilling speed
- 6-8m/h
- Min air pressure
- 0.5-0.7mpa
- Air consumption
- 7-9m³/min
- Certification
- CE
- Applicable industries
- Energy & Mining Construction works Building Material Shops
- Warranty of core components
- 1 Year
- Power
- 3KW
- Category
- Drilling Rigs in China
- Subcategory
- Mining machinery
- Subcategory 2
- Mine drilling rig
- Subcategory 3
- Energy & mineral equipment
- Subcategory 4
- Construction & building machinery
- Listing ID
- 102579564
Description
ZY-100DTH-PE

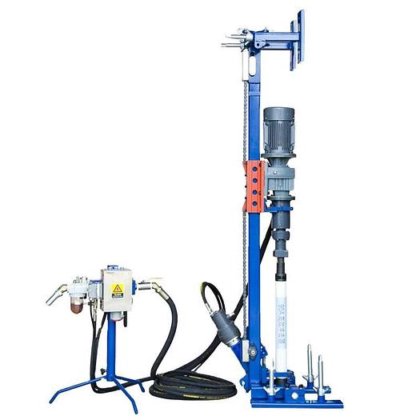

ZY-100DTH-PE PNEUMATIC DTH DRILLING MACHINE
The DTH drilling machine is used for drilling large diameter horizontal, vertical and slant holes during stone quarrying. It is necessary assistive equipment to wire saw machine during the stone quarrying. The machine is controlled jointly by electric motor and compressed air. And the pneumatic units are high quality standard. The machine has the following features: low compressed-air consumption, high drilling efficiency, light in weight, easy operating and installing, etc. The particular screwing and discharging mechanism of the tube devices reduce the intensity of labor. And the machine has the particular design for guiding drilling.
$5,000 USD
