Electronic Strength Tester in Hefei, Anhui, China
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Customized support
- OEM ODM OBM
- Place of origin
- Anhui China
- Power
- Electronic
- Load range
- 120N/500N/2500N/5000N
- Gauge length
- 25~500mm adjustable
- Tensile speed
- 2mm/min~1200mm/min settable
- Return speed
- 2mm/min~1000mm/min
- Timing stretch
- 20s±3s 30s±5s
- Test times
- 99 times max
- Elongation range
- 350% max. while set 200mm gauge length
- Power supply
- AC220V±10% 50Hz
- Weight
- 122kg
- Use
- Textile Testing Instrument / Tensile Testing Machine / Strength Testing Machine
- Category
- Materials Testing in China
- Subcategory
- Testing equipment
- Subcategory 2
- Testing instrument & equipment
- Listing ID
- 102577250
Description

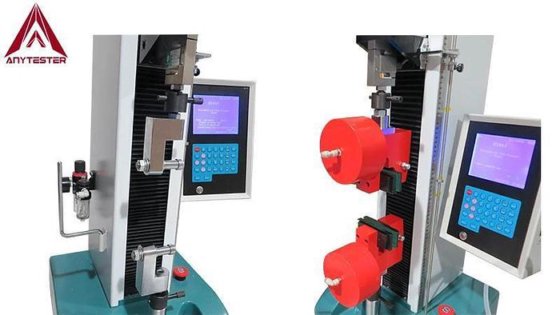

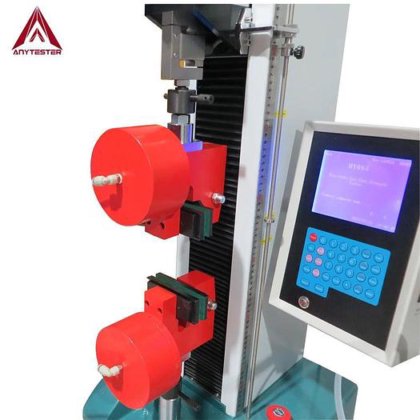

Electronic Strength Tester
HY065C Electronic Strength Tester is used for tensile, tearing, peeling, bursting and other tests of a wide range of materials
Details and Features
★ It is not only used for fabric test (standard configuration), but also for lea yarn test with larger tensile space (optional configuration)
★ Adopt CRE measurement mechanism, micro-computer control, large LCD display, automatic data processing
★ Can be connected with computer to achieve more analysis function, real-time display test curve, breaking force, elongation, yield stress, yield elongation, force at rupture, initial modulus, CV value, etc.
★ The test report can be printout
★ With two load ranges for one machine to satisfy different test requirement and ensure the accuracy
★ Various clamps can be optional to perform different test standards
