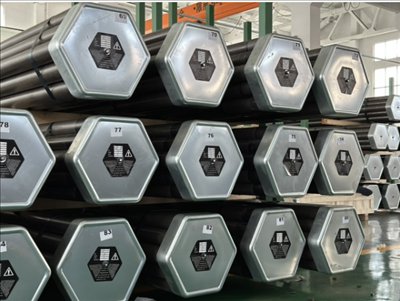

PHD Drill Rod in Wuxi, Jiangsu, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- * material
- 4130
- Note
- For making sure the performance of the drill rods, never mix our rods with any another manufacturer’s rods together, also it may cause machinery failures and catastrophic accident.
- Description
- Code
- Phd-10'
- 20200101
- Phd-3m
- 20200102
- Phd-5'
- 20200103
- Phd-1.5m
- 20200104
- Dimensions (l x w x h)
- Volume; Gross Weight; QTY
- 3100x360x320mm
- 0.36m3; 372kg; 19pcs/bundle
- Category
- Machine Tools equipment in China
- Subcategory
- Drill rod
- Subcategory 2
- Drill rods & casing
- Listing ID
- 102576036
Description
PHD series drill rod designed for large coring drilling, PHD wireline coring drill rods features reliability, firmness and big thread. It is applicable for heavy rope coring.
PHD series drill rod designed for large coring drilling, PHD wireline coring drill rods features reliability, firmness and big thread. It is applicable for heavy rope coring.
Pipe Body:
Quality alloy steel pipe is adopted and 100% test is conducted for each raw material to ensure uniform concentricity, straightness and heat treatment.

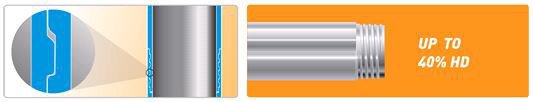

Thread:
Bigger and deeper thread (2.5 threads per inch) provides maximum durability. 40% load efficiency provides sufficient strength for well drilling with large diameter.
Thread Surface Hardening:
after special process treatment, outer thread surface hardness is up to about 55HRC, which effectively avoids "sticking thread" and reduces abrasion and "stuck" due to engagement of thread.
PHD Drill Rods Sizes Available
PHD Drill Rods Overview
* Tubing
• High quality alloy steel tubing
