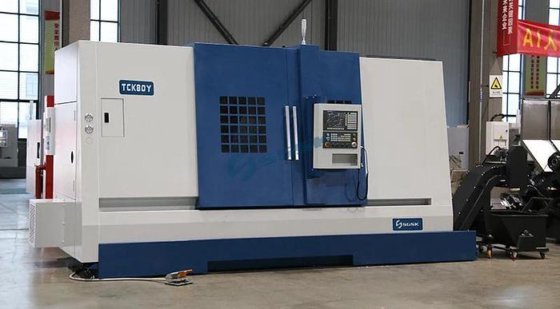

cnc lathe machine turning center TCK80Y cnc lathe machine programming in Zaozhuang, Shandong, China
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Max. length of workpiece (mm)
- 800 720
- Structure
- Slant Bed Lathe
- Machining capacity
- Light Duty
- Max. weight of workpiece(kg)
- 200
- Width of bed (mm)
- 400 mm
- No. of spindles
- Single
- Number of axes
- 2
- Travel (x axis)(mm)
- 350
- Travel (z axis)(mm)
- 900
- Positioning accuracy (mm)
- 0.01/0.01
- Repeatability (x/y/z) (mm)
- 0.004/0.005
- Place of origin
- Shandong China
- Dimension(l*w*h)
- 2800*1860*1850
- Voltage
- 220V/380V/410V
- Cnc control system
- GSK 980TC3
- Tool post stations
- 12 8
- Weight (kg)
- 7000
- Key selling points
- Competitive Price
- Machinery test report
- Provided
- Video outgoing-inspection
- Provided
- Range of spindle speed(r.p.m)
- 50 - 3000 r.p.m
- Cutting torque
- 50
- Name
- cnc lathe machine turning center TCK80Y programming
- Machine type
- cnc machine lathe
- Precision
- High Precision Machine
- Swing over bed
- 800
- Spindle speed
- 50-3000
- Cnc controller
- SIEMENS.FANUC.GSK
- Motor power
- 15
- Spindle bore
- 80
- Max. swing diameter (mm)
- 800
- Spindle motor power(kw)
- 15
- Category
- CNC Lathes in China
- Subcategory
- Lathe
- Subcategory 2
- Industrial machinery
- Subcategory 3
- Machine tool equipment
- Listing ID
- 102322724
Description
cnc lathe machine turning center TCK80Y cnc lathe machine programming
Products Description
Products Parameters
Details Display
45
DEGREE MACHINE STRUCTURE
1.
More stronger
structure
2.
Heavy loading
capacity
3.
Easy metal chips falling
down
SPINDLE UNIT
High speed spindle unit
2.
heavy cutting
3.Connected with hydraulic chuck and cylinder
SCREW
1.Famous Nanjing/Taiwan Screw.
Hard Rails
1.Heavy Loading.
2.Heavy Cutting.
CNC CONTROL SYSTEM
1.Standard:
GSK 988TA
HYDRAULIC CHUCK
12“Hollow hydraulic chuck
TURRET
1.With
12 position Power turret+C axis +Y axis
Multifunctional
of turning, drilling ,milling and tapping.
TAILSTOCK
1.Hydraulic tailstock
2.
Hydraulic automatic moving tailstock
HYDRAULIC SYSTEM
Hydraulic system
to give power supply for hydraulic chuck and hydraulic tailstock
LUBRICATION SYSTEM
1.Automatic
centralized lubrication
device .
SCHNEIDER ELECTRICAL COMPONENTS
1. With
Schneider
safety electrical components
AIR CONDITIONER
Industrial
electrical cabinet
airconditioner.
Find more
$82,150 USD
