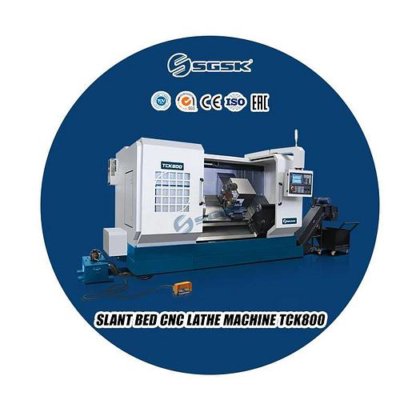

cnc lathe live tooling TCK800 china cnc lathe machine in Zaozhuang, Shandong, China
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Max. length of workpiece (mm)
- 1000/1500/2000/3000
- Structure
- Slant Bed Lathe
- Machining capacity
- Light Duty
- Max. weight of workpiece(kg)
- 400
- Width of bed (mm)
- 400 mm
- No. of spindles
- Single
- Number of axes
- 2
- Travel (x axis)(mm)
- 390
- Travel (z axis)(mm)
- 1000
- Positioning accuracy (mm)
- ±0.005
- Repeatability (x/y/z) (mm)
- ±0.003
- Place of origin
- Shandong China
- Dimension(l*w*h)
- 4850*2150*2400
- Voltage
- 220V/380V/410V
- Cnc control system
- GSK 988T
- Tool post stations
- 12 8
- Weight (kg)
- 7500
- Key selling points
- Competitive Price
- Machinery test report
- Provided
- Video outgoing-inspection
- Provided
- Range of spindle speed(r.p.m)
- 1 - 2000 r.p.m
- Cutting torque
- 0
- Name
- cnc lathe live tooling TCK800 china machine
- Machine type
- cnc machine lathe
- Function
- Machining Metal
- Precision
- High Precision Machine
- Spindle speed
- 1500
- Cnc controller
- SIEMENS.FANUC.GSK
- Motor power
- 15
- Tool size
- 32*32
- Max. swing diameter (mm)
- 800
- Spindle motor power(kw)
- 15
- Category
- CNC Lathes in China
- Subcategory
- Lathe
- Subcategory 2
- Industrial machinery
- Subcategory 3
- Machine tool equipment
- Listing ID
- 102322676
Description
cnc lathe live tooling TCK800
Products Description
Click here to send inquire
Product Paramenters
Features:
This series slant bed CNC lathe is new type automatic machining equipment for metal processing, suitable for batch processing of shaft and plate workpiece, with the main characters such as high efficiency, easy operating and high accuracy, this series lathe machine is mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surfaces, as well as turning various type of threads etc.
◆One-piece bed adopts high strength iron to ensure rigidity and precision
◆Slant bed design and linear guideways enqure process speed and accuracy
◆Carriage and guide-way contact surface use Turcite B to maintain accuracy
Product main technical specifications:
Recommend Products
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc.
