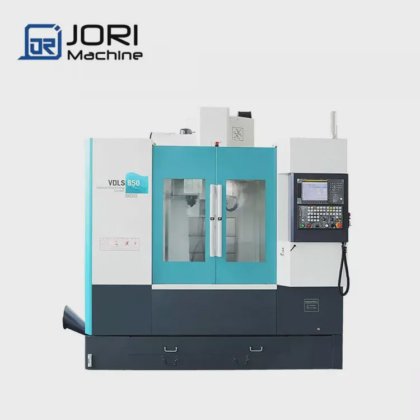

VMC 850 VMC850 Cnc Vertical Machining Center/VMC 850 Vertical Machine Center Machine Center Four Axis CNC Milling Machine Tool in Liaoning, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Spindle taper
- BT40
- No. of spindles
- Single
- Dimension(l*w*h)
- 2496*2530*2679mm
- Weight (t)
- 5.6 T
- Table size (mm)
- 1000*500
- Cnc control system
- GSK FANUC MITSUBISHI KND Siemens
- Number of axes
- 3 4 5
- Table travel (x) (mm)
- 860
- Table travel (y) (mm)
- 510
- Table travel (z) (mm)
- 560mm
- Positioning accuracy (mm)
- 0.008
- Repeatability (x/y/z) (mm)
- 0.005
- Range of spindle speed(r.p.m)
- 0 - 12000 r.p.m
- Spindle motor power(kw)
- 7.5/11
- Max. table load(kg)
- 500 kg
- Min. time of tool change(s)
- 2
- Tool magazine capacity
- 24
- Key selling points
- High-accuracy
- Place of origin
- Liaoning China
- Voltage
- 380V 50HZ
- Video outgoing-inspection
- Provided
- Name
- DMTG Vertical Machining Center CNC Cutting Boring Milling Machine
- Machine type
- DMTG Vertical Machining Center
- Keywords
- VMC Vertical Machine Center CNC Milling
- Cnc or not
- CNC System Automatic Lathe Machine
- Function
- Cutting Metal Milling Boring Drilling Grinding Machine
- Precision
- 0.008mm High Precision CNC Lathe Machine
- Guideways
- Box Guideways
- Application
- Iron steel alloy aluminum or metal product
- Stock or not
- With Stock And Ready To Ship
- Warranty of core components
- 1 Year
- Core components
- motor
- Feed speed(mm/min)
- 0 - 10000 mm/min
- Rapid feed speed(m/min)
- 10000
- Applicable industries
- Building Material Shops Machinery Repair Manufacturing Plant Home Use Retail Construction works Other
- Category
- Machining Centers in China
- Subcategory
- Machining centre
- Subcategory 2
- Industrial machinery
- Subcategory 3
- Machine tool equipment
- Subcategory 4
- Machining centre & parts
- Listing ID
- 102215572
Description
Cnc Metal Milling Machine Price Cnc Lathe Turning Machine Stanok 5 Axis Vertical Machining Center Freze Torna
2022
Exhibition site
1. Is your company a factory or trading company ?
We are factory .
2. What is your payment terms ?
If with stock ,100% payment in advance first,because the machine can ready to ship.
if without stock ,normal 30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.
3. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
4. What is the warranty period ?
The machine is warranted for a period of 13 months after B/L date or 12 months from the date of ship arrival, whichever is earlier, against faulty workmanship and defective material. In this situation, parts will be supplied for free in replacement of defective parts against detailed inspection report after checkup and ratification.
5. Can you send the service engineer to our company ?
When the machine arrive the destination, we timely send service engineers to install machine according to buyer's schedule, the buyer shall bear all expenses.
$23,000 USD
