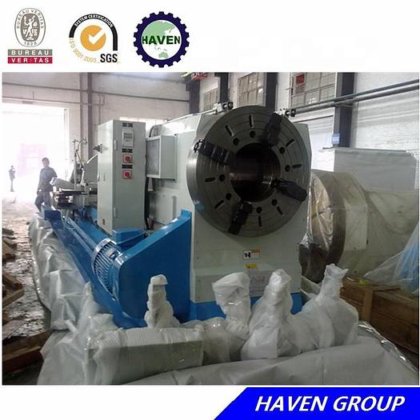

Factory Direct cnc lathe machine vertical lathe cnc machine mini cnc lathe machine automatic in Xi'An, Shaanxi, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Max. length of workpiece (mm)
- 6000
- Range of spindle speed(r.p.m)
- 6.3 - 315 r.p.m
- Machining capacity
- Heavy Duty
- Width of bed (mm)
- 755mm
- Spindle motor power(kw)
- 22
- Place of origin
- Shaanxi China
- Voltage
- 380V/50HZ/3PH
- Dimension(l*w*h)
- 4860x2120x2280mm
- Weight (kg)
- 10000 KG
- Key selling points
- Competitive Price
- Machinery test report
- Provided
- Video outgoing-inspection
- Provided
- Automatic grade
- Semi-automatic
- Cnc or not
- Normal
- Max. swing over carriage
- 640 mm
- Distance between two centers
- 2000mm
- Width of bed
- 755 mm
- Max. swing over bed
- 1000 mm
- Diameter of spindle inner hole
- 360 mm
- Min. clamped diameter of chuck
- 240 mm
- Range of spindle speed
- 6.3 to 315 r.p.m. with 18 steps
- Applicable industries
- Building Material Shops Machinery Repair Manufacturing Plant Construction works Energy & Mining Advertising Company
- Warranty of core components
- 1 Year
- Core components
- motor Gearbox
- Spindle bore(mm)
- 360mm
- Max. turned length (mm)
- 4500 mm
- Spindle bore
- 360mm / 280mm / 460mm
- Max. swing diameter (mm)
- 1000 / 1200
- Category
- CNC Lathes in China
- Subcategory
- Lathe
- Subcategory 2
- Manual lathe
- Subcategory 3
- Industrial machinery
- Subcategory 4
- Machine tool equipment
- Listing ID
- 102059344
Description
Company Information
Main Specification
Max. swing over bed 1000 mm
Max. swing over carriage 640 mm
Distance between two centers 2000mm
Width of bed 755 mm
Diameter of spindle inner hole 360 mm
Min. clamped diameter of chuck 240 mm
Range of spindle speed 6.3 to 315 r.p.m. with 18 steps
Main motor power 22 kW
Kind of metric thread and pitch range 56 kinds 1 to 120 mm
Kind of Whitworth thread and range 37 kinds 30 to 1.125 teeth/in.
Kind of modular thread and range 46 kinds 0.5 to 60 mm
Kind of radial thread and range 46 kinds 0.5 to 60 D.P.
With 4 way toolpost
Tool section ( H×W ) 45×45 mm
Max.
