AX2006-AS | BECKHOFF SERVO AMPLIFIER in Fujian, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Dimensions
- 15.5 cm x 8.5 cm x 3.3 cm
- Weight
- 0.24 kg
- Mfr. part number
- AX2006-AS
- Part number/catalog no.
- AX2006-AS
- Category
- Amplifiers in China
- Subcategory
- Plc
- Subcategory 2
- Control system components
- Listing ID
- 101724006
Description

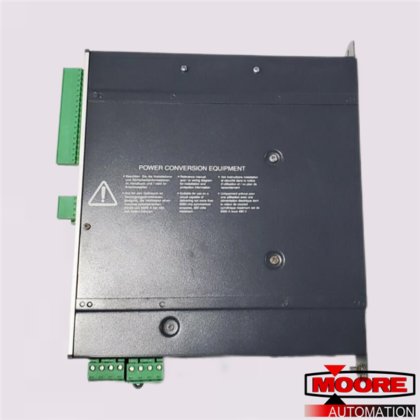

BECKHOFF AX2006-AS SERVO AMPLIFIER
BECKHOFF AX2006-AS SERVO AMPLIFIER IP20 ENCLOSURE
AX2006AS SERVO AMPLIFIER DIGITAL 3-PHASE 230-480V 6 AMP (RMS) 4 KVA IP20 ENCLOSURE Six current intensities (1.5 A, 3 A, 6 A, 10 A, 14 A, 20 A) Three instrument widths: rated current 70mm to 10A 100mm to 14a rated current 120mm to 20A rated current Wide range of rated voltage (3x208-10% to 3x480 V + 10%) Connect the monitor directly to the servo amplifier Two analog input ratings Integrated CANopen (default: 500 kbaudios) for integration into can bus system Set the parameters of multiple amplifiers through the computer connection point of the amplifier Embedded RS232, separate power supply, interface address, embedded pulse Synchronous connection servo motor, linear motor, asynchronous motor
