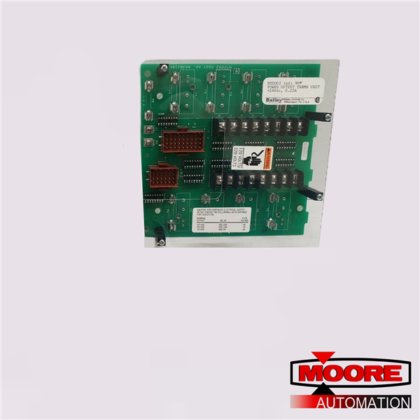

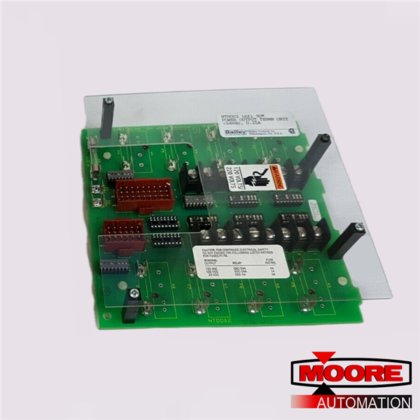

NTDO02 | ABB Digtal Power Output Termination Unit in Fujian, China
Used
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- used
- Dimensions
- 17.8 cm x 5.1 cm x 17.8 cm
- Weight
- 0.5 KG
- Mfr. part number
- NTDO02
- Part number/catalog no.
- NTDO02
- Category
- Input/Output Modules in China
- Subcategory
- Dcs
- Subcategory 2
- Control system components
- Listing ID
- 101712794
Description
ABB NTDO02 Digtal Power Output Termination Unit
ABB NTDO02 Digtal Power Output Termination Unit The configuration contained in a control module
The NTDO02 Digital Output Termination Unit can provide up to eight solid state relay outputs. The configuration contained in a control module determines the output state of the digital output termination unit (TDO) relays. The NTDO02 termination unit is a functional replacement for the NTDO01 termination unit. The TDO termination unit interfaces with an I/O module through a cable connection. It can interface with an IMDSO04 Digital Output Module (DSO) or an IMDSM05 Digital I/O Module (DSM). Each I/O module can have up to 16 output signals for relay control. Each of the 16 output signals can control up to nine relays via the NTDO02 termination unit. The DSM and DSO I/ O modules can control up to 18 TDO termination units. If more than one termination unit is used, the additional termination units are interconnected.
