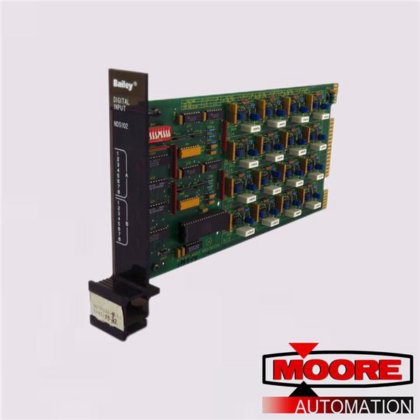

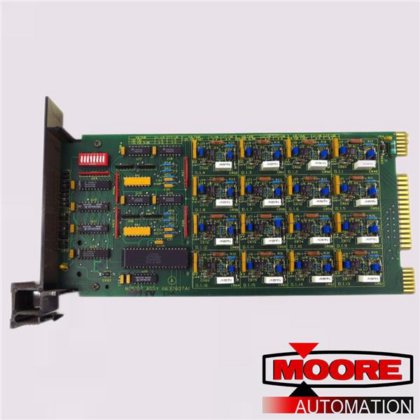

ABB Bailey NDSI02 Digital Input Module
ABB Bailey NDSI02 Digital Input Module The NDSI02 acts as a passive contact input interface. In-puts are available to the Logic Master Module,Multi-Function Controller (MFC), or the Bailey PC-90Processor Module (MPC)
NDSI02 Net 90 Digital Input Module Manufacturers ABB, Bailey Model(s) ABB Bailey Infi 90 and Net 90, ABB Bailey Net 90 Additional Information Bailey NDSI02 Net 90 Digital Input Module Estimated Shipping Size Dimensions: 7.0" x 2.0" x 13.0" (17.8 cm x 5.1 cm x 33.0 cm) Weight: 0 lbs 10.1 oz (0.3kg ) GENERAL The NDSI02 acts as a passive contact input interface. In-puts are available to the Logic Master Module,Multi-Function Controller (MFC), or the Bailey PC-90Processor Module (MPC) on the 12-line Expander Bus(see Figure 2-1). The physical slave address is set with theaddress select switch s1. INPUTS Field input voltages are contact closures of either 24 V dc,125Vdc,or 120 v acrms.
