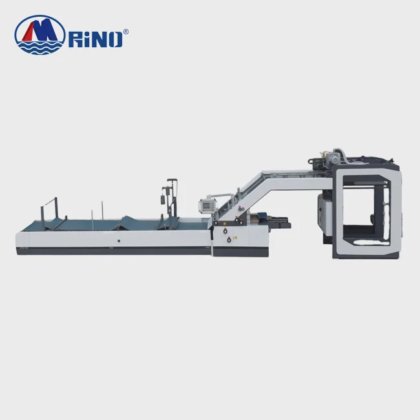

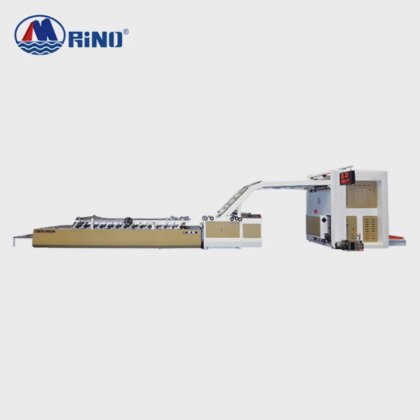

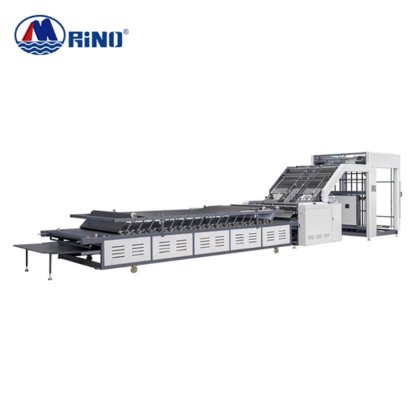

12000p/Hour Intelligent Flute Laminating Machine with Stacker in Shandong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Provided
- Classification
- Cold Laminating Machine
- Application
- Corrugated Board
- Driven type
- Electric
- Automatic grade
- Automatic
- Membrane material
- Paper
- Plastic film mulching modes
- Cold Laminating
- Performance
- Anti Wrinkle
- Maximum size(mm)
- 1300*1250
- Minimum size(mm)
- 400*400
- Top feeding paper thickness
- 150-600 G/M2
- Bottom feeding paper thickness
- a/B/C/E/F Flute,2/3/4/5/7/ Layer , Less Than 12mm
- Laminate precision (mm)
- 1.5
- Max.speed
- 6000PCS/H
- Overall dimension
- 13.5m*;2m*2.4m
- Total weight(t)
- 4.8
- Total power
- 10kw
- Transport package
- Plastic Film Wrapped+Wire Fixed in The Container
- Specification
- HF-A1300
- Hs code
- 844130
- Production capacity
- 10 Sets/Month
- Category
- Coating & Laminating in China
- Subcategory
- Packing machinery
- Subcategory 2
- Laminating machine
- Subcategory 3
- Packaging & printing
- Subcategory 4
- Cold laminating machine
- Listing ID
- 101633502
Description
Corrugated Paper Board Automatic Flute Laminating Laminator Machine For Sale
Product Description
Product description of flute laminating machine
1.Suitable for laminating of cardboard and corrugated cardboard in 150-600 g/m2 .
2.The vacuum suction-type feeding system can lead the paper accurately into themachine;cycle stacking planes in a state of non-stop the next batch of paper stack well, so that more efficient.
3.Using suction automatic feeding of bottom sheet, accoding to the main machine operating speed, continuous automatic tracking.
4.The machine operation is stable, surface paper with corrugated paper joint very accurate. The corrugated paper never pull ahead, surface paper's location is easy adjust.
5.Machine uses touch-screen/PLC/servo motor control system, double frequency control type , the circuit system is stable, and can automatically display the failure alarm.
6.Automatic gluing, and the glue can be used circulatory, avoid glue waste.
7.
Services offered by seller
This seller offers new machines
This seller offers transport & logistics
$25,000 USD
