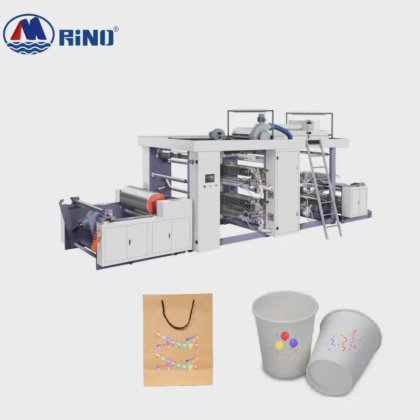

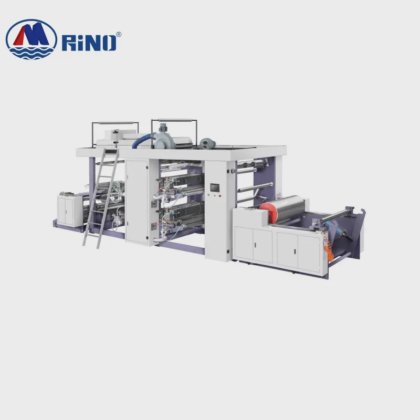

Paper Cup Printing and Die Cutting Machine Flexo Printing Machine in Shandong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- After-sales service
- Provided
- Printing page
- Single Faced
- Printing color
- 4 Colors
- Anilox roller
- Ceramic Anilox Roller
- Dryer
- UV
- Embossing structure
- Platen Press
- Max. printing material width
- 1000 mm
- Max. printing width
- 960 mm
- Transport package
- Standard Export Package
- Specification
- HP-1000
- Hs code
- 844130
- Production capacity
- 15 Sets/Month
- Category
- Flexographic printing in China
- Subcategory
- Printing machinery
- Subcategory 2
- Packaging & printing
- Subcategory 3
- Flexographic printer
- Listing ID
- 101625216
Description
Application
Product Description
1.
The machine adopt with synchronous belt drive and hard gear face gear box.
The
gear
box
adopt
with
synchronous
belt
drive
each
printing
group
high precision planetary gear oven(360 º adjust the plate) gear driving the press printing roller;
2.
After printing, long running material space ,it can make the ink drying easily,better
results.
Product Parameters
Model
HP-1000
Max. Printing material width
1000mm
Max. Printing width
960mm
Max. Unwinding diameter
1300mm
Max. Rewinding diameter
1300mm
Printing length range
230-1000mm
Printing speed
5-100 m / min
Register precision
≤±0.15mm
Thickness of plate ( including the thickness of double sides glue)
2.28mm+0.38mm
Detailed Photos

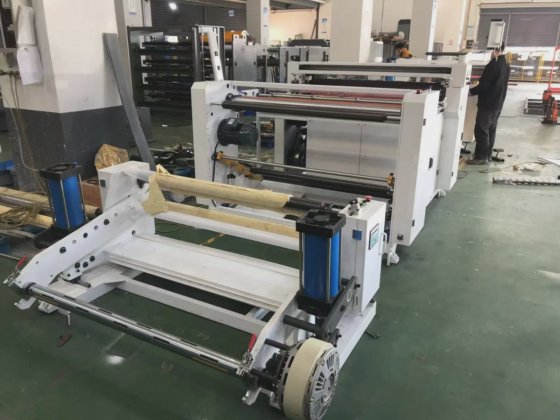

1. Unwinding part
1.
Single work
station
2.
Hydraulic clamp,hydraulic lift the material
,
hydraulic
control
the
unwinding material width
,
it can adjust left and right movement.
3.
Magnetic powder brake auto tension
Services offered by seller
This seller offers new machines
This seller offers transport & logistics
$25,000 USD
