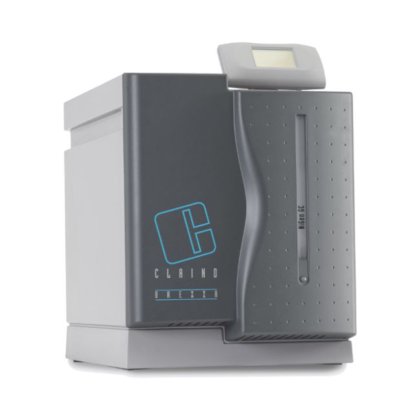

CLAIND NiGen GC/HC in Lenno, Lombardy, Italy
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Nitrogen generator
- Designed for GC
- Applications
- - Gas chromatography (Carrier gas, Make-up ECD)
- Flow
- 500 Nml/min ± 10% at 2000 m asl
- Technology used
- PSA CLAIND
- Output pressure
- 0 - 6 bar/0 - 87 psi ± 3% no load to full load
- Purity
- ＞ 99,9995 %
- Moisture
- ＜ -50°C dew-point ATP ± 2°C ATP
- Inlet air requirements
- Particulate matter ≤ 0.01 µm Oil vapors ≤ 0.01 mg/m3 Humidity ≤ 3° C dew point ATP Minimum pressure: 8 bar Average consumption: 6 Nl/min
- Power supply x nigen gc
- 115/230 Vac ±10% 60-50 Hz 50 w
- Power supply x nigen gc hc
- 115 Vac ±10% 60 Hz 200 W 230 Vac ±10% 50 Hz 200 W
- Protection index
- IP20
- Noise measured at 1m from the instrument
- ＜ 50 dBA for 98% of the operating time ＜ 60 dBA for 2 sec each cycle
- Operating temperature
- 5°C - 40°C/40°F - 100°F
- Environmental humidity
- max 90% without condensation
- Altitude max
- 2000 m asl
- Dimensions
- Height : 40 cm + 7 cm/15.8" + 2.8" Width : 38 cm/14.9" Depth : 53 cm/20.8"
- Weight
- GC version: 28 kg/62 lbs GC HC version: 32 kg/70.5 lbs
- Pneumatic connections
- Compressed air inlet: G 1/8" female Nitrogen outlet: G 1/8" female
- Category
- Generator Sets in Italy
- Subcategory
- Nitrogen
- Subcategory 2
- Gas generators
- Listing ID
- 101526662
Description
Designed for GC
Available in basic and HC version for full hydrocarbon removal by Pt/Pd catalyst
Capable of delivering 500 Nml/min with > 99.9995% purity
Suitable for supporting up to 12 FID/ NPD make-ups, up to 7 ECD or 5 S/S
Prepared for connection with dedicated AirComp air compressor

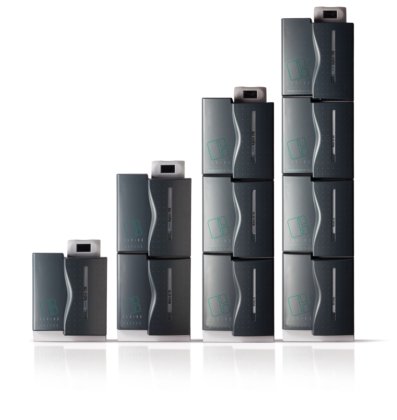

Parallel connection of up to 4 stackable generators with tower configuration
CPU with Touch Screen Display connectable with CAN-BUS to generators for monitoring, operating states and menu reading with maintenance status, alarm report and functional parameters
