Cube And Concrete Blocks Computer Control Compression Testing Machine in Dongguan, Guangdong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Customized support
- OBM
- Power
- Hydraulic
- Test force showed the relative error
- ≤indicating value±1%
- Hydraulic pump rated pressure
- 25MPa
- Piston stroke
- 60mm
- Loading rate
- 0.3KN/S~10KN/S
- Error loading speed
- ±5%
- Pump rated flow
- 1.52L/min
- Max load
- 300kN / 10kN
- Upper and lower bearing plate size
- 155mm
- Outside dimension mm
- 870*450*1400mm
- Use
- Universal Testing Machine / Compression Testing Machine
- Subcategory
- Testing equipment
- Subcategory 2
- Testing instrument & equipment
- Listing ID
- 101370055
Description

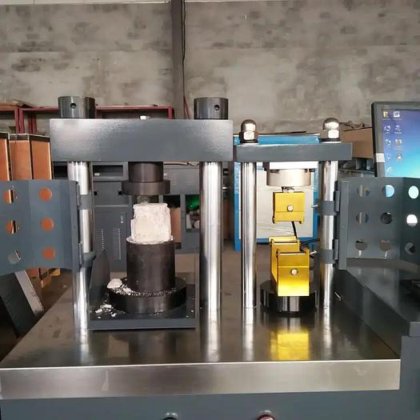

300KN Concrete Cube And Concrete Blocks Computer Control Compression Testing Machine
Introduction
:
ZL
-8012
The testing machine is mainly used for brick, stone, cement, concrete and other building materials, compressive strength test
.
Main performance technical specifications
Hydraulic System
The hydraulic oil tank driven by high-pressure pump into the motor oil, flows through the unidirectional valve, high pressure filter, pressure valve, servo valve, into the cylinder
Computer control signals to the servo valve
,
Control direction and opening of the servo valve
,t
o control the flow into the cylinder
achieve constant test force control
Control system:
System including digital servo valve, high-precision sensors, controllers and software, high control precision and reliability.Meet GB, ISO, ASTM and other standards for cement, mortar, concrete and other materials testing requirements.
System has the following functions
Closed-loop control with force
;
Services offered by seller
This seller offers new machines
