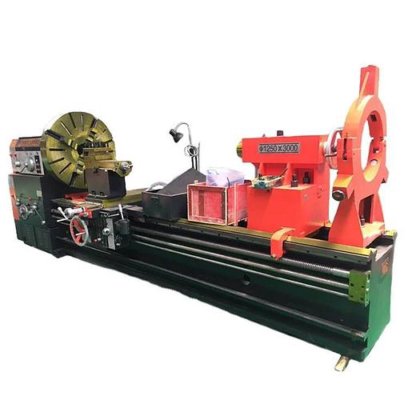

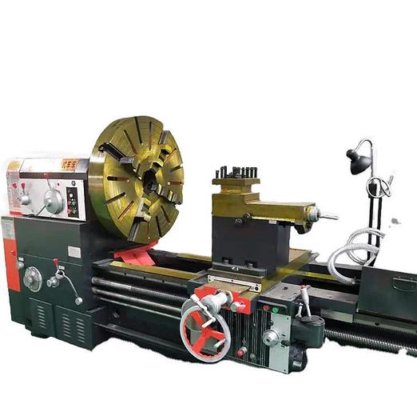

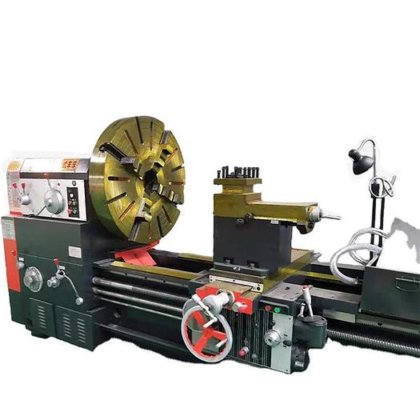

Universal Horizontal Lathe Machine Cw 6163 Lathe machine for processing metal material in Zhengzhou, Henan, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Max. length of workpiece (mm)
- 1500 mm
- Machining capacity
- Heavy Duty
- Width of bed (mm)
- 300 mm
- Spindle motor power(kw)
- 380v 220v
- No. of spindles
- 2
- Number of axes
- 2
- Travel (x axis)(mm)
- 400 mm
- Travel (z axis)(mm)
- 300 mm
- Positioning accuracy (mm)
- -0.015~+0.015
- Repeatability (x/y/z) (mm)
- -0.006~+0.006
- Place of origin
- Henan China
- Dimension(l*w*h)
- 3800*4300*5300mm
- Voltage
- 380v 220v
- Cnc control system
- GSK
- Tool post stations
- 4
- Weight (kg)
- 3800
- Key selling points
- High Safety Level
- Machinery test report
- Provided
- Video outgoing-inspection
- Provided
- Swing over bed
- 630mm
- Swing over carriage
- 348mm
- Spindle nose
- A2-15(8*M22)
- Spindle bore
- 130mm
- Taper hole of spindle
- 1:20/140
- Range of spindle speeds
- forward:3.15-315: reverse:3.5~291 r/min
- No. and range of metric thread
- 44;1-120 mm
- No. and rang of inch thread
- 31;28-1/4mm
- Maxtravel of top slide mm
- 300mm
- Toolpost brand
- Hongda
- Applicable industries
- Hotels Garment Shops Building Material Machinery Repair Manufacturing Plant Food & Beverage Factory Farms Restaurant Home Use Retail Shop Printing Construction works Energy Mining Advertising Company Other
- Core components
- Bearing Motor Pump Gear PLC Gearbox
- Spindle bore(mm)
- 130mm
- Max. turned length (mm)
- 5000
- Max. spindle speed (r.p.m)
- 315
- Warranty of core components
- 1.5 years
- Max. swing diameter (mm)
- 400MM
- Category
- CNC Lathes in China
- Subcategory
- Lathe
- Subcategory 2
- Industrial machinery
- Subcategory 3
- Machine tool equipment
- Listing ID
- 101206386
Description
Universal
Horizontal Manual Metal Lathe Machine 630Mm
Cw 6163 Lathe
These lathes are suitable mainly for turning internal and external cylindrical Conical and other swing surface
as well as various metric ,inch, module and diametric pitch threads.
Feature:
1.Guide way surfaces and gears in headstock are supersonic frequency hardened for long service life and lower noise.
2.The spindle system is high in rigitidy and accuracy.
3.Rapid feed structure is available on apron.
4.Clutch in headstock makes the lathe start smoothly and brake quickly.
5.Gear grooves are available on bed to prevent tailstock from retreating
