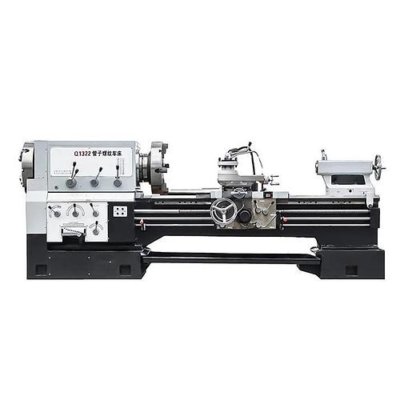

Pipe Thread Lathe Machine Q1350 Big Bor Lathe Pipe Threading Lathe Machine in Zhengzhou, Henan, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Max. length of workpiece (mm)
- 3000mm
- Structure
- Flat Bed Lathe
- Machining capacity
- Heavy Duty
- Max. weight of workpiece(kg)
- 500
- Width of bed (mm)
- 610 mm
- No. of spindles
- 2
- Number of axes
- 2
- Travel (x axis)(mm)
- 520 mm
- Travel (z axis)(mm)
- 1300 mm
- Positioning accuracy (mm)
- -0.015~+0.015
- Repeatability (x/y/z) (mm)
- -0.006~+0.006
- Place of origin
- Henan China
- Dimension(l*w*h)
- 3800*4300*5300mm
- Voltage
- 380v 220v
- Cnc control system
- GSK
- Tool post stations
- 4
- Weight (kg)
- 15000
- Key selling points
- High Safety Level
- Machinery test report
- Provided
- Video outgoing-inspection
- Provided
- Range of spindle speed(r.p.m)
- 1 - 8000 r.p.m
- Cutting torque
- 500 N.m
- Z axas travel
- 1300mm
- Spindie speed steps
- FWD.18/REV. 9
- Distance between centers
- 1 500/3000mm
- Chuck type
- 4-jaw ma nuai
- Tailstock quill taper
- MT#6
- Swing over cross side
- 610mm
- Tailstock quill travel
- 300mm
- Main spindle motor
- 22KW
- Weight
- 3500
- Spindle taper
- BT40
- Min. time of tool change(s)
- 6
- Feed speed(mm/min)
- 1 - 500 mm/min
- Rapid feed speed(mm/min)
- 1 - 500 mm/min
- Travel (y axis)(mm)
- 500
- Warranty of core components
- 1.5 years
- Max. swing diameter (mm)
- 1000MM
- Spindle motor power(kw)
- 380v 220v
- Category
- CNC Lathes in China
- Subcategory
- Lathe
- Subcategory 2
- Industrial machinery
- Subcategory 3
- Machine tool equipment
- Listing ID
- 101205766
Description
Best Price High Accuracy Big Bore Oil Country Lathe Machine Q1350
Application:
Q1313 horizontal pipe threading lathe machine is mainly used for turning the internal and external threads including metric and inch thread,as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks,this machinery is equipped with taper guide bar device which enables this series to process taper thread.
Big spindle bore and double chuck allows clamp and process big diameter pipes;
Integral machine bed adopts high strength iron to realize high rigidity and precision;
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;
Equipped with taper guide bar device this enables the machine to process taper threads.
