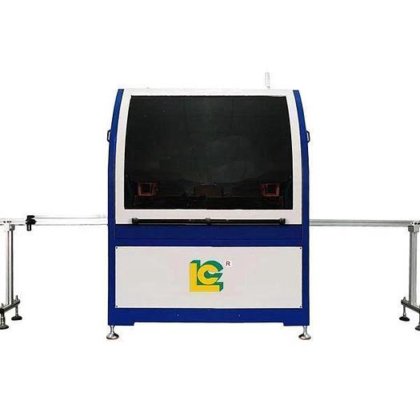

LC Brand Multi Function Full Automatic CNC Servo Single Color special shape Glass Bottle Screen Printing Machine in Guangdong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Plate type
- Screen Printer
- Place of origin
- Guangdong
- Automatic grade
- Automatic
- Color & page
- Single Color
- Voltage
- 380V
- Weight
- 1240 KG
- Circle printing diameter
- 15mm~100mm
- Circular printing height
- 20mm~240mm
- Flat printing diameter
- R20mm~R180mm
- Flat printing height
- 20mm~240mm
- Power requirements
- AC380V 3Phase 50Hz /60Hz
- Rated power
- 7.5KW
- Pressure requirements
- 5 ~ 8bar
- Machine size
- L2700 * W2000 H1700
- Mechanical weight
- about 1240kg
- Key selling points
- High-accuracy
- Machinery test report
- Provided
- Video outgoing-inspection
- Provided
- Warranty of core components
- 1 Year
- Core components
- motor Gear PLC Other
- Applicable industries
- Manufacturing Plant Printing Shops Other Advertising Company Bottle
- Certification
- CE
- Gross power
- 7.5KW
- Category
- Screen Printing in China
- Subcategory
- Screen printers
- Subcategory 2
- Printing machine
- Subcategory 3
- Commercial equipment & machinery
- Listing ID
- 101175355
Description
Automatic Full Servo Glass Bottle Screen Printing Machine
1.This machine is suitable for screen printing of round, oval, square, special-shaped bottles (radians on both sides are different) and double-sided two colors and other special-shaped containers.
It is suitable for glass packaging, bottle packaging, cosmetic packaging, medicine and food packaging containers,materials can be glass, plastic, ceramic, metal and so on.
has the advantages of convenient debugging and installation, stable and reliable operation, strong versatility and high printing efficiency.
3.This machine can be equipped with screen heating, ink scraper heating function and UV light fixing furnace at any time, can use ordinary self-drying ink printing, UV ink printing, high temperature solid ink printing brush, with high adaptability.

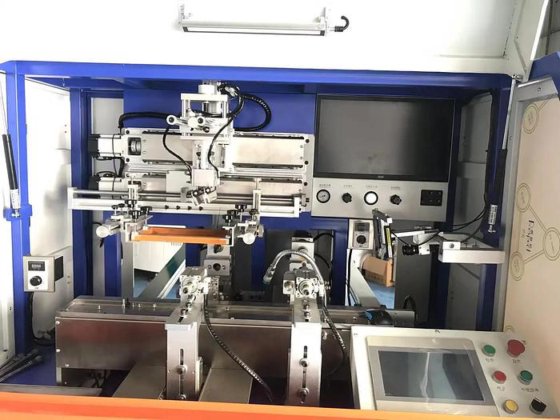

Machine Introduction
is mainly composed of automatic bottle feeding structure, automatic dust removal device, automatic feeding structure of manipulator, transmission structure of full servo system, automatic printing and brushing main body (printing system).
2.Using modular programmable processor and touch screen display control system, running more smoothly.
3.The fixture is easy to replace the bottle shape, simple debugging and installation, more convenient operation.
4. Machine stability, high precision; You can also choose to install UV light solid treatment system and screen heating system, suitable for UV ink and high temperature ink arbitrary switch.
Machine Advance
1. The elliptical bottle can be printed on both sides of the same color at the same time, greatly improving the printing speed, and can also be printed on one side.
2.The square plane bottle can realize one side to four sides of the same color one-time printing, can also choose one side to four sides of any printing surface.
3. The triangular bottle can be printed one time from one side to three sides of the same color, or choose one side of any printing surface from one side to three sides. 4. Bottles with hexagons, octagons and other polygons can be printed in one time with the same color from one side to eight sides, or one side of any printing surface from one side to eight sides.
Printing Sample
