LC Direct Factory Automatic Small Glass Bottle Screen Printing Machine Screen Printer For Glass Bottle Jar Can LC-VR108DUV in Guangdong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Plate type
- Screen Printer
- Place of origin
- Guangdong China
- Automatic grade
- Automatic
- Color & page
- Single Color
- Voltage
- 380 V
- Dimensions(l*w*h)
- 1500*1180*1900 mm
- Weight
- 1100 KG
- Printing type
- Automatic UV screen printer for small glass plastic bottles jars
- Max printing speed
- 3200 pcs/hour
- Printing area
- 50*150 mm
- Height for bottle
- 20 mm < height 150
- Diameter for bottle
- 10 mm < diameter 60
- Uv lamp power
- 2.4 KW
- Air supply
- 5 to 7 bar
- Air consumption
- 100 liter/min
- Product appearance
- round
- Application
- Round glass plastic bottle cover jar
- Key selling points
- Automatic
- Machinery test report
- Provided
- Video outgoing-inspection
- Provided
- Warranty of core components
- 1 Year
- Applicable industries
- Manufacturing Plant Machinery Repair Shops Retail Printing Energy & Mining Advertising Company UV screen printer shop
- Certification
- CE
- Core components
- Bearing motor PLC Pressure vessel Gearbox Cam divider
- Gross power
- 4.5 KW
- Category
- Screen Printing in China
- Subcategory
- Screen printers
- Subcategory 2
- Printing machine
- Subcategory 3
- Commercial equipment & machinery
- Listing ID
- 101174955
Description
Automatic UV silk screen printing machine for small glass plastic bottles jars caps
This screen printer is specially designed for small glass bottles, plastic bottles, glass jars.

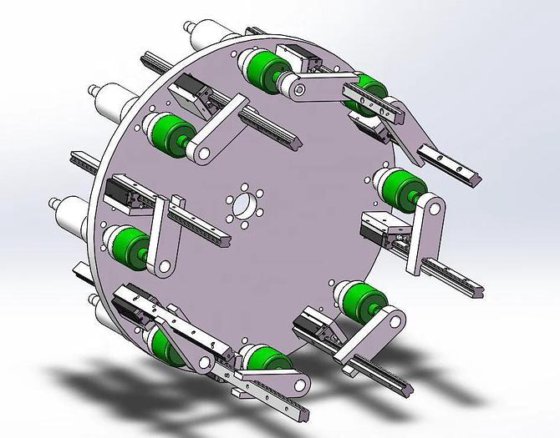

The clamp rotates as a whole, and the bottle does not move. Ensure that the bottle is not thrown out, broken, or moved.
This printer with servo optical fiber indexing system. Can add German Leuze color sensor, multicolor overprint. The Machine with Japan Fuji servo, and Japan Hitachi PLC system.
Features:
1.The machine integrates an automatic feeding device, flame treatment, automatic direction detect ice device and UV curing system, and so on.
2. It combines mechanical driven with pneumatically driven, and LED display. The maximum printing capacity of the machine is 3200pcs/hr.
3. This system is equipped with various warning devices such as low pressure and Overloading. The sensor can detect “no product, no printing”.
4. The electrical components and control system adopt from Japan and Germany, ensure good printing quality.
5. We provide machine design and construction services for special applications.
1-color automatic UV screen printer with photoelectric sensors
Fitting:
1. 1 set fixture for the product
2. 1 screen frame
3. 1 operation manual.
Printing samples
Services offered by seller
This seller offers new machines
This seller can help you plan & execute entire projects
This seller offers spare parts
