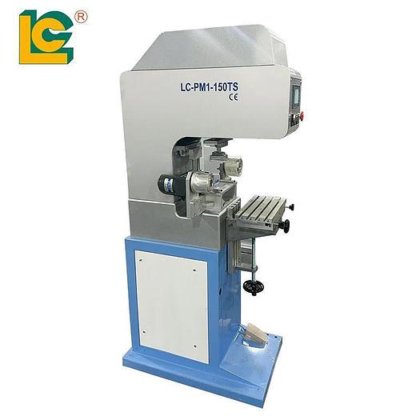

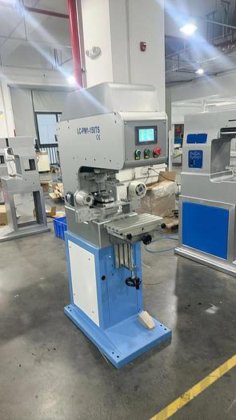

High Quality Single Color Servo Tampo Pad Printer fixture rotary multi-color pad printing machine with Automatic Clean System in Guangdong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Plate type
- Gravure
- Place of origin
- Guangdong China
- Automatic grade
- Semi-automatic
- Color & page
- Single Color
- Voltage
- AC110V/220V
- Dimensions(l*w*h)
- 810*450*1370mm
- Weight
- 150 KG
- Application area
- plastic toys pens keyboard products laber hardware Parts.
- Max. printing area
- 50*60mm
- Steel plate area
- 70*140 mm
- Sealed ink cup diameter
- 60 mm
- Max printing speed
- 1800PCS/H
- Machine size
- 810*450*1370mm
- Video outgoing-inspection
- Provided
- Machinery test report
- Provided
- Warranty of core components
- 1 Year
- Core components
- PLC Pressure vessel Gear
- Key selling points
- Multifunctional
- Applicable industries
- Building Material Shops Manufacturing Plant Machinery Repair Retail Printing Energy & Mining pad machine shop
- Gross power
- 35w
- Category
- Pad printing in China
- Subcategory
- Pad printers
- Subcategory 2
- Printing machine
- Subcategory 3
- Commercial equipment & machinery
- Listing ID
- 101174936
Description
Fully electric drive pad printing machine with servo control
It is applied for print various kind of material,such as metal,glass,chinaware,plastic and so also suitable for small printing area like plane, cambered and irregular surface,such as the button in mobile phone,golf ball and the ball head,toys,pen,mouse,electronic appliance,crafts and so on
Advantages:
1.This machine is PLC+touch screen control and fully electric drive, does not require any air source. All parameter can be set on the touch screen. And it has memory system to save 20 product parameter settings，, easy to operate, accurate printing and stable running.
2.set servo motor and PLC touch screen control
3.For this machine, steel plates moving rear and back, and the servo motor accurately controls the printing head to move up and down, ensuring accurate printing effect. It is particularly suitable for logo printing of medical products and electronic high-tech products.
4.Equipped with automatic rubber pad cleaning system for better printing effect
5.High quality steel frame structure, surface in temperature paint, light weight and solid structure, beautiful and practical.
6.Independently adjustable rubber head up and down stroke and speed.All moving components are controlled by servo motors and PLC screen touch control, with an accuracy greater than 5 times that of pneumatic type pad printing machine.
7.Each of the cliches ink dishes can be X, Y, angle independent tuning, chromatic accurate, and improve efficiency.
Oil cup design: avoid volatilization, save ink, environmental protection
