300℃ Lab Heating Mold With Temperature Controller in Xiamen, Fujian, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Payment
- L/C, T/T, Western Union, Credit Cards, Paypal
- Shipping port
- Xiamen Port
- Lead time
- 15 Days
- Certificate
- CE, IOS, ROHS, SGS, UL Certificate
- Shape of compressible sample
- Cylinder etc. other shapes can be customized
- Mold heating temperature
- RT-300℃(the mold heating temperature can be up to 500℃ at extra fees)
- Thermostat type
- PLC program digital temperature controller, RT - 600℃, accuracy 0.1℃
- Power supply
- 220V/300W
- Common mold specifications
- Ф6、Ф8、Ф10、Ф12、Ф13、Ф15、Ф18、Ф20、Ф25、Ф30... The mold size can be customized
- Mould material
- Alloy tool steel: Cr12MoV (hard alloy steel is available at extra fees)
- Mould hardness
- HRC60-HRC62
- Mold cavity depth
- 45mm
- Mold dimensions
- Ф78×138mm
- Mold weight
- 2.7kg
- Standard configuration
- Electric heating mould 1 set + heat shield 1 set + intelligent temperature controller 1 set (hydraulic press and water cooler are optional)
- Calculation formula of die pressure
- Area of oil cylinder / area of mould × pressure gauge reading = actual pressure of die. Do not overpressure!
- Note
- The above indicators are for reference only, we can customize various specifications, materials, shapes of molds according to customer needs
- Category
- Temperature Controllers in China
- Subcategory
- Pressing die
- Listing ID
- 100841825
Description

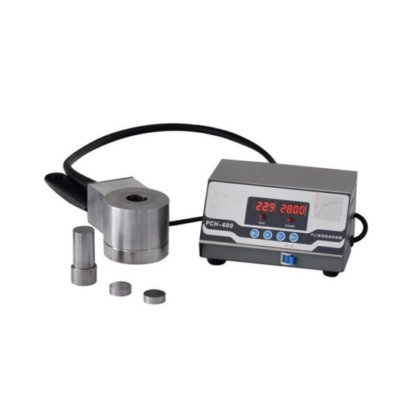

300℃ Lab Heating Mold With Temperature Controller
Heating mold is developed on the basis of common mold, which can heat and pressurize the mold samples through intelligent temperature controller. This kind of mould can be used to press powder or particle samples into cylindrical sheet or cylinder shape, and the specific mould size and shape can be customized according to customer requirements. It is suitable for rubber, plastic, leather, chemical industry, pigment, electronic appliances, textile, hardware and other fields. It is a complete set of equipment for engineering and technical personnel of colleges and universities and research institutes to carry out spectrum detection and qualitative analysis.
Standard configuration
Electric heating mold(customizable) 1 set
High temperature insulation board 1 set
Temperature controller 1 set
Optional
Hydraulic press machine
Water cooler→It is recommended to configure water-cooled machine if rapid cooling is required after mold heating.
