Axxon MYT50S in Shenzhen, Guangdong, China
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Dimension (d x w x h)
- 606x741x638mm
- Axis travel (x x y x z/xxy1xy2xz)
- 300x300x100mm
- Dispense area (x x y x z)
- 260x260x100mm
- Machine weight
- 104 kg
- Gantry type
- H-Bridge
- System control
- Windows 10 IPC, Axxon/Mycronic software
- Drive system
- AC servo motor and precise ball screw
- Work load
- 10 kg
- Z-axis work load
- 5 kg
- Max speed
- X: 800 Y: 800 Z: 300 mm/s
- Acceleration
- 0.8 g
- Repeatability
- ± 10um
- Memory capacity
- 256G
- Power
- AC 220V, 50/60 Hz, 650 W, 10 A
- Visual system
- Industrial CCD
- Camera resolution
- 0.01 x 0.01 mm(adjustable)
- Field of view
- 14 x 14 mm(adjustable)
- Light source
- LED
- Optional function
- Low fluid level detection module, automatic needle calibration module
- Certification
- CE
- Category
- Industrial Robots in China
- Subcategory
- Product
- Subcategory 2
- Tabletop
- Subcategory 3
- Dispensing
- Listing ID
- 100813578
Description
The Axxon Mycronic MYT50 tabletop dispensing is designed to tackle complex electronics assemblies. Possessing most of the capabilities of our inline dispensers in a tabletop format, ideal for NPI builds and batch level volume dispensing processes.
The MYT50 is a computer controller desktop robot that is highly capable and scalable to meet current and future requirements. From advanced prototyping to batch production, the MYT50 is designed with flexibility and configurability in mind.

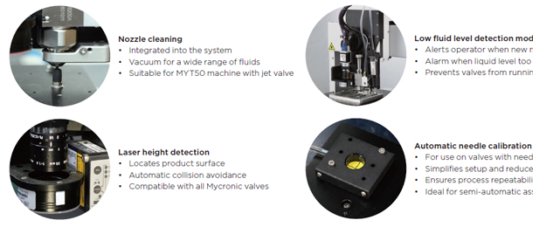

Product Features
FULL RANGE DISPENSER ON A TABLETOP
The MYT50 comes with advanced capabilities, including automated calibration and visual inspection, barcode and fiducial scanning, and z-axis laser height compensation, bringing easy-to-use in-line functionality into a space saving tabletop format.
COMMON APPLICATION
• Fingerprint module dispensing • FPC dispensing • VCM dispensing • Underfill
• Encapsulation and coating • Edge bonding and sealing • Corner bonding
