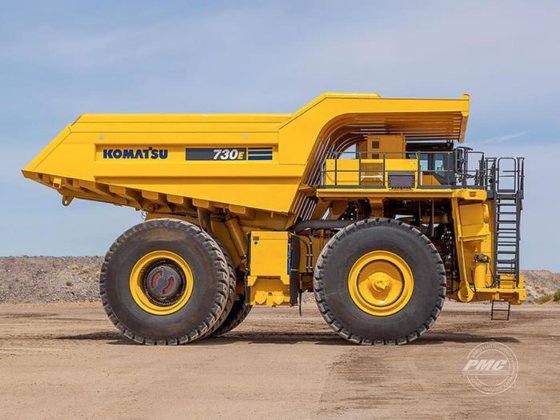

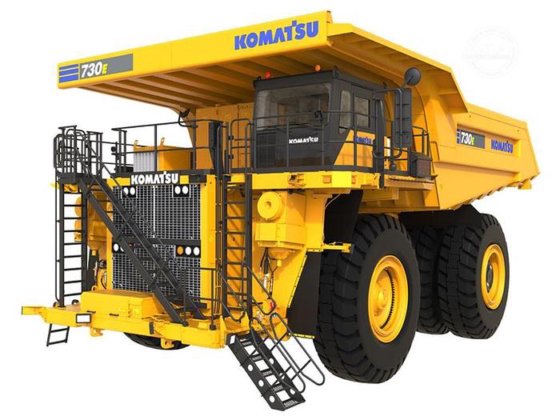

2024 KOMATSU 730E-10 in Denver, CO, USA
New
Doubleclick to zoom in
Contact the seller for
additional photos and information.
Specifications
- Condition
- new
- Type
- L&M radiator assembly, split-flow, with deaerator-type top tan
- Max. front stroke
- 12.31" (312.6 mm)
- Max. rear stroke
- 10.99" (279.1 mm)
- Max. rear axle oscillation
- ±5.3°
- Plate material
- 70,000 psi (482.6 mPa tensile strength steel)
- Casting material
- 90,000 psi (620.5 mPa tensile strength steel)
- Rail width
- 11.02" (280 mm)
- Rail depth (minimum)
- 31.38" (797 mm)
- Top and bottom plate thickness
- 1.26" (32 mm)
- Side plate thickness
- 0.75" (19 mm)
- Drive axle mounting
- Pin and spherical bushing
- Drive axle alignment
- Swing link between frame and axle
- General information
- 4 x 8D 1400 CCA | 12 volt | in series/parallel | 220 ampere-hour batteries | bumper-mounted with disconnect switch
- Floor sheet - outer (1379 mpa 200,000 psi tensile strength steel)
- 0.63" (16 mm)
- Floor sheet - center (1379 mpa 200,000 psi tensile strength steel)
- 0.75" (19 mm)
- Front sheet (1379 mpa 200,000 psi tensile strength steel)
- 0.39" (10 mm)
- Side sheet (1379 mpa 200,000 psi tensile strength steel)
- 0.31" (8 mm)
- Canopy sheet (690 mpa 100,000 psi)
- 0.24" (6 mm)
- Sae heaped 2:1
- 145 yd³ (111 m³)
- Standard komatsu body weight
- 62,100 lb (28169 kg)
- Service brakes: all-hydraulic actuated
- Front - Wheel speed disc. Three calipers on a 46.08" (1168.4 mm) O.D. disc | Rear - Dual disc armature speed. Two 25" (635 mm) O.D. discs per side. One caliper per disc.
- Traction system
- Wheel spin-slide control
- Front service apply pressure
- 2,500 psi (17237 kPa)
- Rear service apply pressure
- 1,120 psi (7722 kPa)
- Secondary braking system
- Automatically applied prior to hydraulic system pressure dropping below an acceptable level. System meets ISO secondary stopping requirements.
- Wheel brake locks
- Switch-activated
- Parking brakes
- Spring-applied, hydraulically released, with speed application protection. Rated to hold on ±15% grade at maximum GVW.
- Service brakes
- All-hydraulic actuated
- Electric dynamic retarder
- 3,400 HP (2535 kW)
- Radiator frontal area
- 50.1 ft² (4.65 m²)
- Steering
- Accumulator assisted with twin double acting cylinders provide constant rate steering. Secondary steering automatically supplied by accumulator.
- Turning circle diameter (sae)
- 89' (27.2 m)
- Reservoir
- 134 U.S. gal (507 L)
- Filtration
- In-line replaceable elements
- Suction
- Single, full-flow, 100 mesh
- Hoist and steering
- Dual, in-line, high pressure
- Brake component cabinet
- Above deck, easily accessible with diagnostic test connections
- Hoist
- Two 3-stage dual-acting outboard cylinders, internal cushion valve, over-center dampening
- Hoist times
- Power-up loaded 21.4 sec | Power-down 10.5 sec | Float-down empty 14 sec
- Pumps
- Two pumps, single package, end of alternator
- System relief pressures
- Hoist 2,500 psi (17237 kPa) | Steering and brake 4,000 psi (27580 kPa)
- Hoist and brake cooling
- Tandem gear pump with output of 666 lpm (176 gpm) at 1900 rpm and 17236 kPa (2,500 psi)
- Steering and brake
- Pressure-compensating piston pump with output of 254 lpm (67 gpm) at 1900 rpm and 19134 kPa (2,775 psi)
- Lighting
- 24 Volt
- Cranking motors
- Two / 24 Volt
- Cooling system
- 117 U.S. gal (441 L)
- Def tank
- 76 U.S. gal (288 L)
- Motor gear box (each)
- 10 U.S. gal (38 L)
- Crankcase*
- 59 U.S. gal (223 L)
- Hydraulic system
- 210 U.S. gal (795 L)
- Fuel tank
- 831 U.S. gal (3146 L)
- *
- Includes lube oil filters
- Category
- Haul Trucks in USA
- Subcategory
- Komatsu
- Subcategory 2
- Off-highway trucks
- Listing ID
- 100208032
Description
730E-10 ELECTRIC DRIVE MINING TRUCK
Every aspect of this truck is rigorously engineered to help reduce your cost per ton. From multiple innovative fuel-saving features to industry-leading build quality and longevity, count on it being up to the challenge for years even in harsh conditions.
EVERY PART FOCUSED ON PRODUCTIVITY
• Optimized weight
• Tier IV certified engine
• Automotive-style operator cab
FEATURES & BENEFITS
MONITOR EFFICIENCY WITH PAYLOAD DATA
Payload Meter IV can help you increase production by optimizing payload, maximizing cycle efficiency and reducing the life cycle costs of your machine. Standard on Komatsu off-highway trucks, PLM IV tracks carry weight, haul cycles, speed data and much more.
TRACTION CONTROL FOR FIRMER FOOTING
Help your drivers stay on task and operate efficiently even in slippery conditions. Wheel traction control technology detects and corrects wheel spin or slide events and operates automatically and independently of the service brakes.
MULTIPLE ADVANTAGES OF ELECTRIC DRIVE
Electric drive means fewer mechanical components and less maintenance, which can help improve truck availability and lower life cycle cost. With the Tier 4 certified diesel engine, electric drive also keeps fuel use low and contributes to a smaller carbon footprint.
CONTROLS HELP IMPROVE DRIVER AWARENESS
Cruise control governs both acceleration and deceleration, allowing operators to concentrate on steering and situational awareness while maintaining a constant speed. Using simple automotive-style controls, drivers can “set it and forget it.”
CUSTOMIZED FOR YOUR OPERATION
Every truck body is stringently engineered to meet the requirements for a specific application while carrying its rated payload. We’ll work with you to understand the material properties at your mine site and identify the appropriate liner package.
STRUCTURALLY ENHANCED FRAME
When cycling through big loads, durability is everything. Created using advanced computer-aided design, finite element analysis, and full-scale dynamic testing, the truck’s frame has been verified to carry rated payload with utmost structural reliability.
PROMOTES A SAFE WORK SITE
Multiple technologies help your operators maintain a safe working environment. That includes not only traction and cruise controls, but also KomVision, an optional monitoring system that uses six cameras and eight radars to create a 360-degree view of the area around the truck.
MULTIPLE FUEL-REDUCING TECHNOLOGIES
The less fuel you use, the longer your engine lasts. That’s why the engine and drive systems of Komatsu trucks are specifically tuned together to seek efficient power usage while minimizing fuel consumption, including optimized air handling with two stage turbocharging.
MODULAR DESIGN MEANS MORE UPTIME
Elegant, modular design throughout helps keep your truck on the job by enabling quick repair and replacement of major power train and hydraulic parts and making routine maintenance fast and easy.
STANDARD EQUIPMENT
• Air cleaners, Donaldson® w/evacuators
• Alternator
• Auto lubrication system w/ground level fill & level indicator
• Back up alarm
• Batteries–4 x 8D (1400 CCA’s)
• Battery charging cable and socket
• Body impact plate
• Brakes: dry front & rear
• Cruise speed control
• Deck guard rails
• Electric start
• Fast-fill fuel system (in tank)
• Filters, high pressure hydraulic
• Fuel tank sight gauge (1)
• Ground level radiator fill
• L&M Radiator
• Mud flaps
• Muffled exhaust–deck-mounted
• Power supply, 24 volt and 12 volt DC
• Quick disconnects (hoist and steering)
• Radiator sight gauge
• Removable power module unit (radiator, engine, alternator, blower)
• Reverse retarding
• Service center–LH
• Thermostatic fan clutch
OPERATOR ENVIRONMENT & CONTROL
• All hydraulic service brakes w/auto apply
• Battery disconnect switch
• Brake lock and drive system interlock
• Circuit breakers, 24 volt
• Dedicated auxiliary circuits in operator cab (ladder lights, 2-way radios, fire suppression power)
• Diagonal staircase across grille (L to R) w/ tread
• Dimpled surface on walkways
• Dynamic retarding with continuous rated element grids
• Engine access guard rail
• Engine shutdown at ground level
• Hoist propulsion interlock
• Horns (electric–front and back-up)
• Hydraulic tank ladder
• Integral ROPS/FOPS Level 2 cab
• Isolation mounted cab
• Maintenance and power lockout
• Parking brakes with warning light & speed application protection
• Power steering w/auto secondary steering
• Pump driveline protector
• Radiator fan guard
• RH & LH multi-cambered convex mirrors
• Seat belts, Operator 3-point belt, 3" black lap belt, 2" blaze orange shoulder strap
STANDARD HIGH VISIBILITY DELUXE CAB
• AC drive interface display
• Air conditioner HFC-134A
• AM/FM radio with CD, USB & MP3
• Dome light
• Electronic Dash & Status Panel
- Body up
- Engine oil temperature (high)
- Parking brake
- Propulsion system not ready
- No DC link voltage
- No propel
- Service brake applied
- Wheel brake lock applied
- Maintenance monitor
• Engine hourmeter, oil pressure gauge, coolant temperature gauge, hydraulic oil temperature gauge
• Engine shutdown w/ “Smart Timer” delay
• Floor mat (double barrier)
• Fuel gauge in cab
• Fuel low level light and buzzer
• Gauges (w/backlight)
• Headlight switch
• Heater and defroster (heavy-duty)
• Heater switch
• High beam selector and indicator
• Horn switch (center of steering wheel)
• Indicator lights (blue)
Engine service
Komtrax Plus snapshot (IM)
• Komatsu Payload Meter™ IV
• Komtrax Plus
• Operator seat, adjustable w/air suspension, lumbar support and arm rests
• Panel lighting (adjustable)
• Passenger seat, mechanical suspension
• Power windows
• Pressurized cab air system w/fan on
• Single brake/retarder pedal
• Sunvisor (adjustable)
• Tilt & telescoping steering column
• Voltmeter (battery output)
• Windshield (tinted safety glass)
• Windshield wiper (dual) and washer (electric)
LIGHTING
• Back-up lights–rear mount (2) LED
• Back-up lights–R and L–deck mount (2) LED
• Brake and retard lights on top of cab
• Clearance lights (LED)
• Dynamic retarding, rear (2) (LED)
• Engine compartment service lights
• Fog lights (2) halogen
• Headlights (8) halogen
• Manual back-up light, switch and indicator
• Payload lights R and L (LED)
• Stairway lights
• Stop & tail lights (2) (LED)
• Turn signals (LED)
OPTIONAL
• Amber Beacon Light
• Auxiliary hydraulic system
• Body Liners*
• Body up sling
• Bumper mounted headlights
• Double Wall Exhaust Tubes
• Engine Access Platform-LH
• Extended canopy
• Fast-fill fuel system (left side remote)
• Fire extinguisher 20 lb
• Heated body
• Hot start engine coolant (240V 2-2500W)
• Hot start engine oil (240V 2-500W)
• Hot start hydraulic oil (240V 2-500W)
• Komatsu Smart Rims
• KomVision All-Around Monitoring System
• Komatsu Retractable Ladder System
• LED headlights
• Mudflaps on hydraulic tank & fuel tank
• PLM™ IV scoreboards
• Rock Ejectors
• Service center–RH
• Shutters (radiator)
• Special language decals
• Suspensions, cold weather
• Wiggins Quick Fluid Fill & Engine Oil Evacuation System
*Available factory installed or non-installed. All other options and accessories listed are available factory installed only.
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
